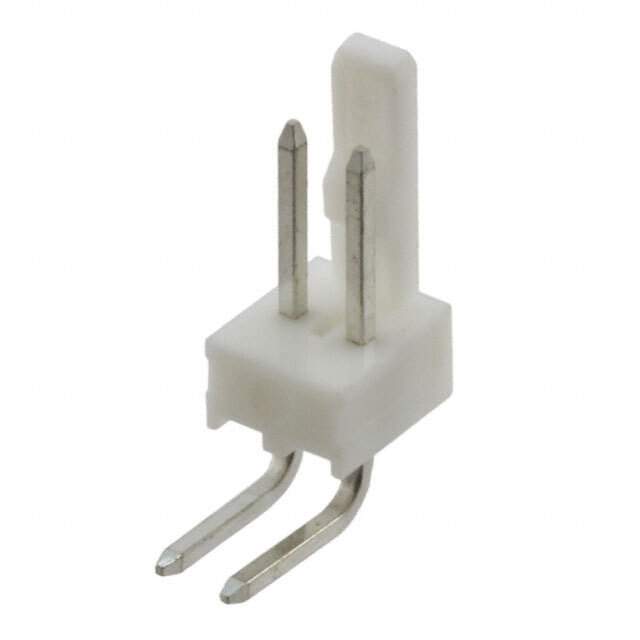

0022057028 Real Image
Same model may have multiple batches, images only for reference.

0022057028

Part No 0022057028
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 2.54MM / Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series KK254, 7395
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.264" (6.70mm)
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.228" (5.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 002205
Standard Package 24,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 850723-0022057028
Ultra Librarian 3D Model Ultra Librarian 0022057028 CAD Model

Description

The KK254, 7395 rectangular connector header, part number 850723-0022057028, is a reliable component for electrical connections.

  • Positions: 2
  • Pitch: 0.100 inches (2.54mm)
  • Contact Type: Male Pin
  • Termination: Solder
  • Fastening: Friction Lock
  • Mounting: Through-Hole, Right-Angle
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Applications: Automotive, General Purpose, Medical, and Telecommunications
  • Manufacturer: Molex
  • Status: Active in the market
  • Standard Package: 24,000 pieces
