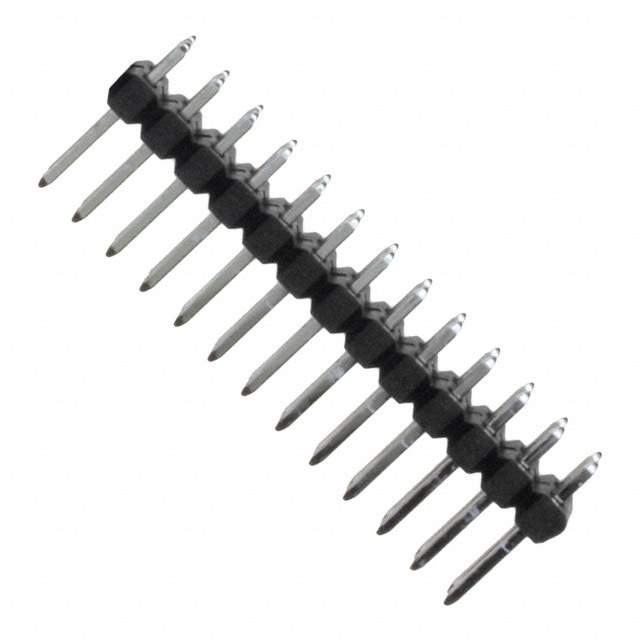

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series C-Grid 70280
Package Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.107" (2.71mm)
Overall Contact Length 0.437" (11.10mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features -
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Base Product Number 001089
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1 pcs
Win Source Part Number 1380491-0010897261
Ultra Librarian 3D Model Ultra Librarian 0010897261 CAD Model

Description

The C-Grid 70280 Header, Male Pins is a versatile component for your electronic projects. Manufactured by Molex, LLC, a trusted name in the industry, this header is designed to provide a secure and reliable connection for your male pins. It features a 26-position design with a pitch of 0.100" (2.54mm), making it suitable for various applications. The header is made of high-quality copper alloy material to ensure durability and longevity. With its solder termination and push-pull fastening type, it offers a convenient solution for your connector needs. Upgrade your electronic setup with the Molex C-Grid 70280 Header, Male Pins.
