Same model may have multiple batches, images only for reference.

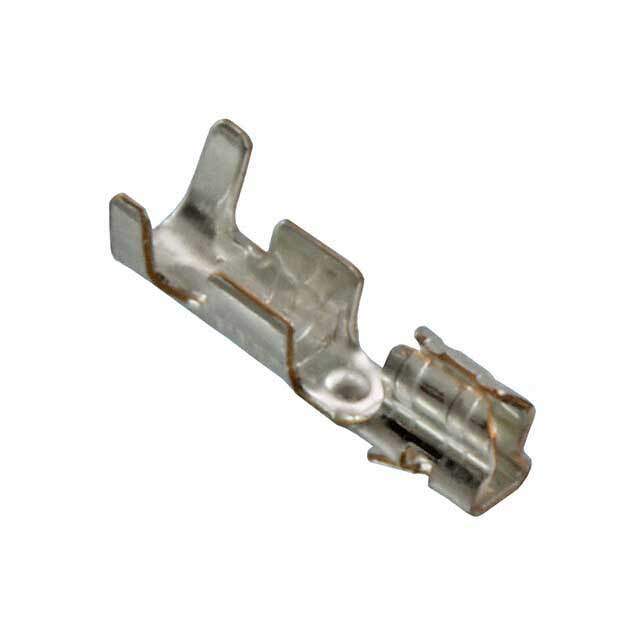

0008701039 Real Image
Same model may have multiple batches, images only for reference.

0008701039

Part No 0008701039
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN SOCKET 22-28AWG CRIMP TIN / Socket Contact Tin 22-28 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Contacts
Mfr Molex, LLC
Series Mini-SPOX 5263
Package Tape & Reel
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-28 AWG
Contact Finish Tin
Contact Finish Thickness 35.4µin (0.90µm)
Base Product Number 000870
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 12,000 pcs
Win Source Part Number 1380347-0008701039
Ultra Librarian 3D Model Ultra Librarian 0008701039 CAD Model

Description

The Molex Mini-SPOX 5263 is a rectangular connector contact designed for reliable and secure electrical connections.

  • Contact Finish: tin
  • Contact Finish Thickness: 35.4µin (0.90µm)
  • Wire Gauge: 22 to 28 AWG
  • Termination: crimp
  • Pin Configuration: socket
  • Package: tape and reel
  • Series: Mini-SPOX 5263
  • Manufacturer: Molex, LLC
