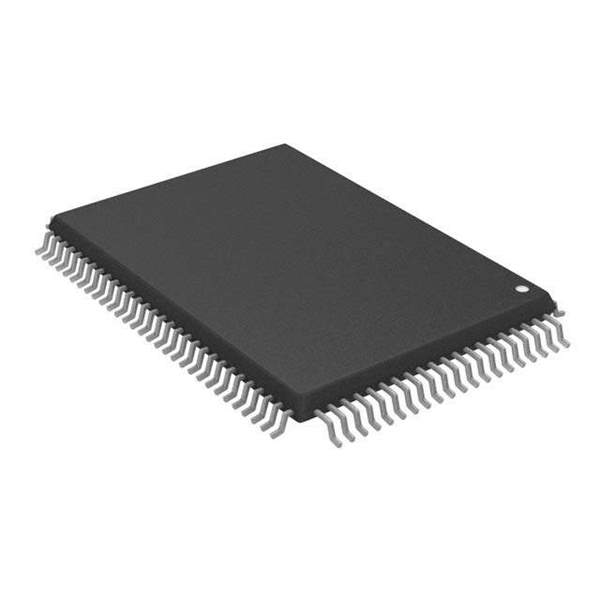

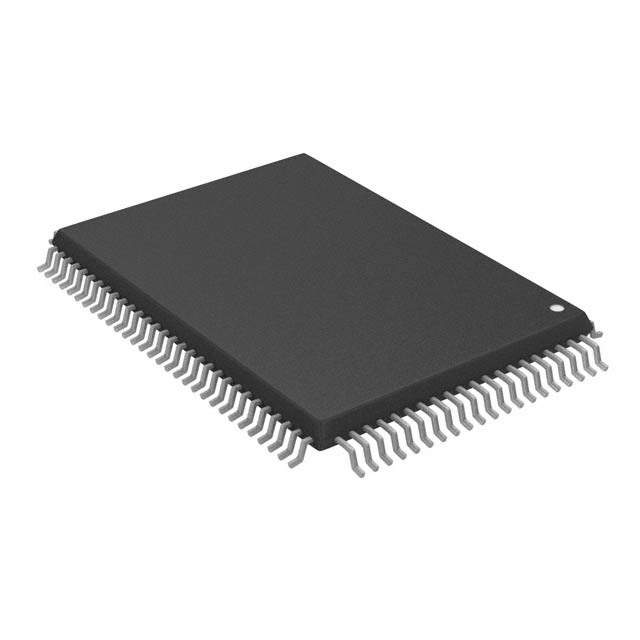

The MT9074AL is a T1/E1 framer integrated circuit from Mitel (now part of Microchip Technology). It's designed to interface between digital transmission lines (T1 or E1) and higher-level digital systems, handling framing, error detection, and other essential functions for reliable data transmission.

Applications

• Telecommunications Equipment: Used in PBXs (Private Branch Exchanges), central office switches, and other telecom infrastructure equipment.
• Data Communication Systems: Implemented in multiplexers, channel banks, and other data communication systems that utilize T1/E1 lines.
• Voice over IP (VoIP) Gateways: Employed in VoIP gateways to interface with traditional T1/E1 networks.
• Wireless Base Stations: Used in wireless base stations to connect to the core network via T1/E1 links.

Features

• T1/E1 Framing: Supports both T1 (1.544 Mbps) and E1 (2.048 Mbps) framing formats.
• Clock Recovery: Recovers clock signals from the incoming T1/E1 data stream.
• Line Encoding/Decoding: Handles line encoding and decoding (e.g., AMI, B8ZS, HDB3).
• Error Detection and Correction: Detects and optionally corrects errors in the received data.
• Jitter Attenuation: Reduces jitter in the recovered clock and data signals.
• Interface to Microcontrollers: Provides an interface to microcontrollers for configuration and control.

Benefits

• Standard Compliance: Complies with T1/E1 standards, ensuring interoperability with other equipment.
• Reliable Data Transmission: Provides robust error detection and correction capabilities.
• Simplified System Design: Integrates many of the functions required for T1/E1 interfacing.
• Reduced Component Count: Reduces the number of discrete components required in the system.
• Improved Performance: Enhances the performance of the system by providing accurate clock recovery and jitter attenuation.

Additional Details

The MT9074AL typically requires a 5V power supply. It includes various diagnostic features to aid in troubleshooting. The device datasheet provides detailed information about the pinout, electrical characteristics, and application circuits. It is important to consult the manufacturer's datasheet for detailed specifications and application guidelines to ensure proper operation and compliance with T1/E1 standards. The interface between the MT9074AL and a host microcontroller is often done via a parallel or serial interface allowing the host to configure the MT9074AL and monitor its status. It also supports various loopback modes for testing and diagnostics.
