ZN2PD-4R753+ Mini-Circuits
Same model may have multiple batches, images only for reference.

ZN2PD-4R753+

Part No ZN2PD-4R753+
Manufacturer Mini-Circuits
Catalog RF and Wireless >RF Power Dividers/Splitters
Description PWR SPLTR, 450 - 7500 MHZ, 50
Datasheet
ZN2PD-4R753+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

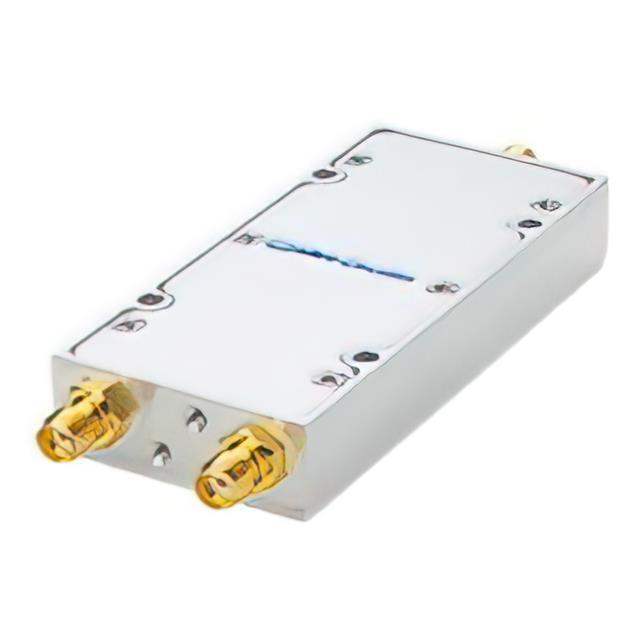

Mini-Circuits’ ZN2PD-4R753+ is a 2-way 0° power splitter/combiner providing 30W power handling as a splitter (1W as a combiner) and low insertion loss across the 450 to 7500 MHz frequency range. It has an outstanding combination of high power handling and low loss, minimizing power dissipation and providing excellent signal fidelity from input to output. The ZN2PD-4R753+ comes housed in a rugged aluminum alloy case measuring 3.25" x 1.46" x 0.55" with a common SMA-Female port on one side and two SMA-Female ports on opposite side of the case.
