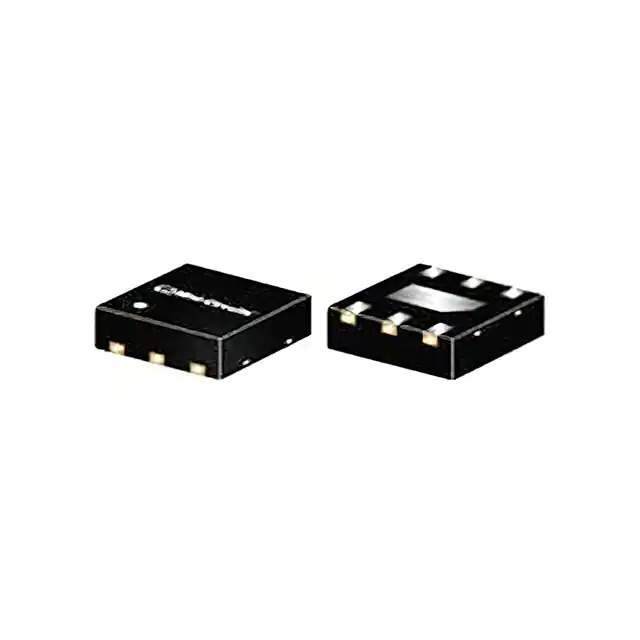

Same model may have multiple batches, images only for reference.

YAT-5A+

Name: YAT-5A+
Brand: Mini-Circuits
SKU: 939898
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	YAT-5A+
Manufacturer	Mini-Circuits
Catalog	Attenuators
Description	RF ATTENUATOR 5DB 50OHM 6VDFN
Datasheet	YAT-5A+ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - Attenuators
Mfr	Mini-Circuits
Series	YAT-A
Package	Tape & Reel
Product Status	Active
Attenuation Value	5dB
Frequency Range	0 Hz ~ 18 GHz
Power (Watts)	1.4W
Impedance	50 Ohms
Package / Case	6-VDFN Exposed Pad
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0020
Win Source Part Number	939898-YAT-5A+
Ultra Librarian 3D Model	Ultra Librarian YAT-5A+ CAD Model

Alternative Products

Description

The 939898-YAT-5A+ is an attenuator from Mini-Circuits. 939898-YAT-5A+ from Mini-Circuits

Impedance: 50 Ohms
Power: 1.4W
Frequency Range: 0 Hz to 18 GHz
Attenuation: 5dB
Package: 6-VDFN exposed pad
Status: Active
Standard Package Quantity: 2,000 pcs
