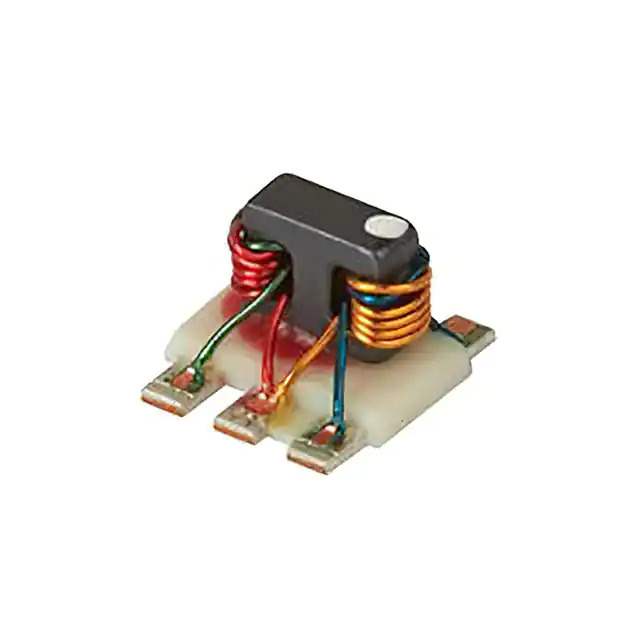

TCM9-1+ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 2MHz ~ 280MHz
Phase Difference 1°
Insertion Loss (Max) 3dB
Return Loss (Min) 6.95dB
Package / Case 6-SMD, Flat Leads
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 712485-TCM9-1+
Ultra Librarian 3D Model Ultra Librarian TCM9-1+ CAD Model

Description

The 712485-TCM9-1+ is an RF and Wireless Balun component manufactured by Mini-Circuits.

  • Frequency Range: 2MHz to 280MHz
  • Phase Difference: 1 degree
  • Maximum Insertion Loss: 3dB
  • Return Loss: Minimum 6.95dB
  • Package: 6-SMD, Flat Leads
  • Product Status: Active
  • Standard Package: 2,000 pieces
  • Application: RF and wireless
