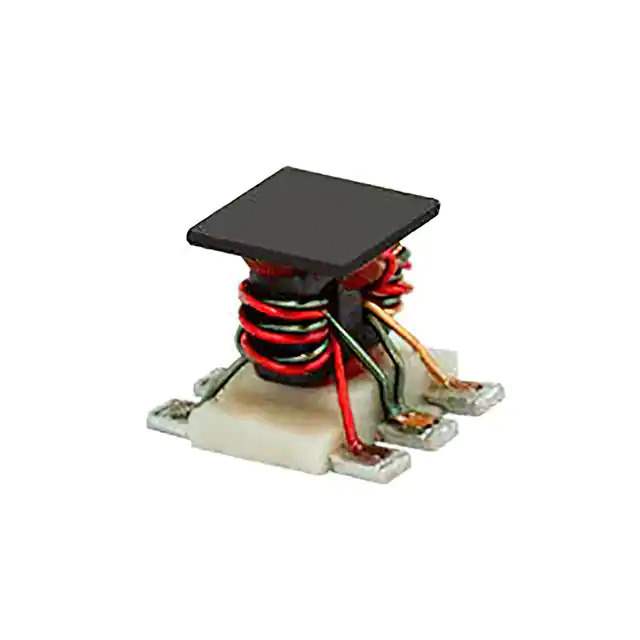

TCM4-452X+ Real Image
Same model may have multiple batches, images only for reference.

TCM4-452X+

Part No TCM4-452X+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:4 CORE & WIRE TRANSFORMER, 20
Datasheet
TCM4-452X+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 20MHz ~ 4.5GHz
Phase Difference 5°
Insertion Loss (Max) 3dB
Return Loss (Min) 10.63dB
Package / Case 6-SMD (5 Leads), Flat Lead
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 712484-TCM4-452X+
Ultra Librarian 3D Model Ultra Librarian TCM4-452X+ CAD Model

Description

The TCM4-452X+ is a balun from Mini-Circuits.

  • Frequency Range: 20MHz to 4.5GHz
  • Phase Difference: 5°
  • Maximum Insertion Loss: 3dB
  • Minimum Return Loss: 10.63dB
  • Package: 6-SMD (5 Leads), flat lead
  • Standard Package: 2,000 pcs
