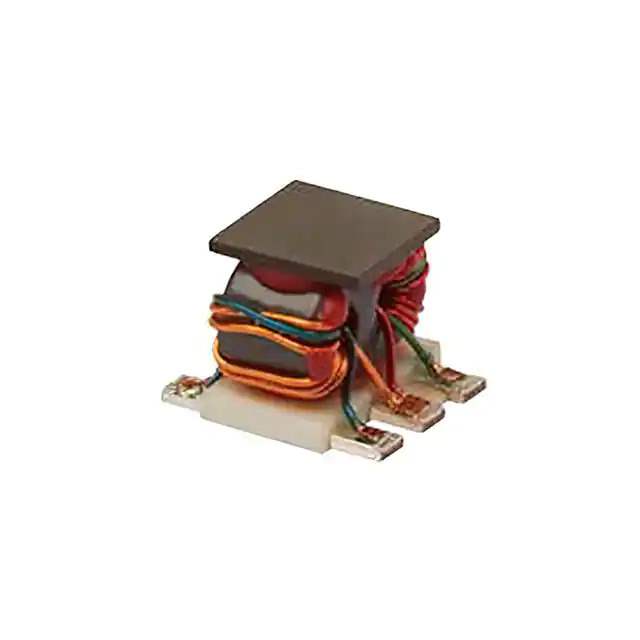

TC1-1X+ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 1.5MHz ~ 500MHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 2°
Insertion Loss (Max) 3dB
Return Loss (Min) 10.1dB
Package / Case 5-SMD Module
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 1098109-TC1-1X+
Ultra Librarian 3D Model Ultra Librarian TC1-1X+ CAD Model

Description

The 1098109-TC1-1X+ is a Balun designed for applications in the RF and Wireless category.

  • Category: RF and Wireless
  • Frequency Range: 1.5MHz to 500MHz
  • Impedance (Balanced): 50 Ohm
  • Phase Difference: 2 degrees
  • Insertion Loss: 3dB (max)
  • Return Loss: 10.1dB (min)
  • Mounting: Surface Mount
  • Package: 5-SMD module
  • Manufacturer: Mini-Circuits
  • Status: Active
  • Packaging: Tape and Reel
