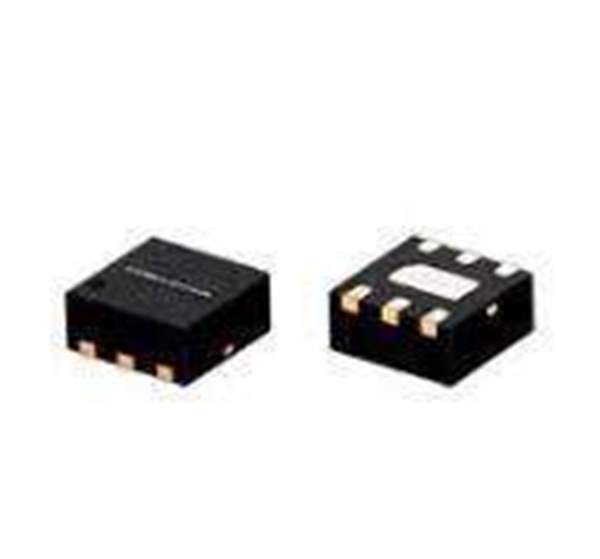

PVGA-123+ Mini-Circuits
Same model may have multiple batches, images only for reference.

PVGA-123+

Part No PVGA-123+
Manufacturer Mini-Circuits
Catalog RF Amplifiers
Description SMT VGA, 0.4 - 12 GHZ, 50
Datasheet
PVGA-123+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The PVGA-123+ is a GaAs pHEMT high performance variable gain amplifier operating from 0.4 to 12 GHz. The amplifier provides 16 dB Gain, +30 dBm OIP3 and +22 dBm P1dB with 17 dB typical return loss while operating from +6 V and 77 mA DC power. The amplifier gain is voltage adjustable over a 16 dB dynamic range while maintaining excellent input IP3. The amplifier is ideal for use in very wideband ECM, Test and Measurement and Back Haul Radio systems.
