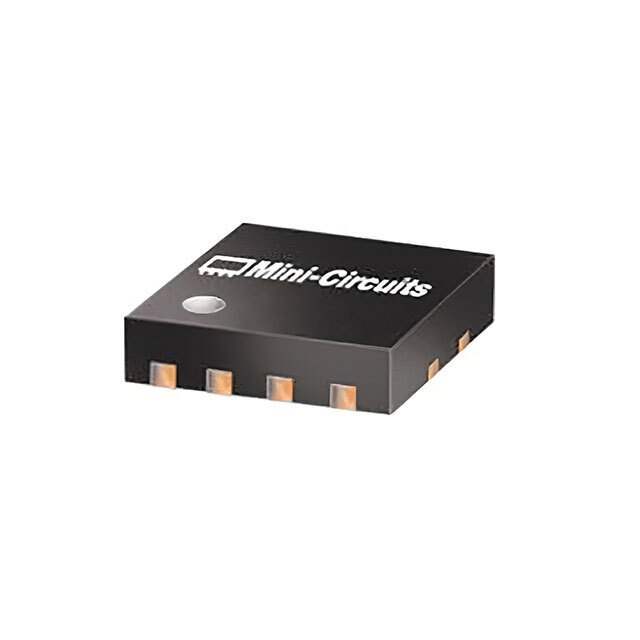

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tape & Reel (TR)
Product Status Active
Frequency 1.5GHz ~ 2.5GHz
P1dB 19.5dBm
Gain 15.7dB
Noise Figure 1.2dB
RF Type LTE, GPS
Voltage - Supply 3V, 4V
Current - Supply 57mA
Test Frequency 2GHz
Grade -
Mounting Type Surface Mount
Package / Case 8-TFDFN Exposed Pad
Supplier Device Package MC1631-1
Ultra Librarian 3D Model Ultra Librarian PMA2-252LN+ CAD Model

Description

Mini-Circuits PMA2-252LN+ is a E-PHEMT based Ultra-Low Noise MMIC Amplifier with a unique combinations of low noise and high IP3 making this amplifier ideal for sensitive high dynamic range receiver applications. This design operates on a single 3 to 4V supply.
