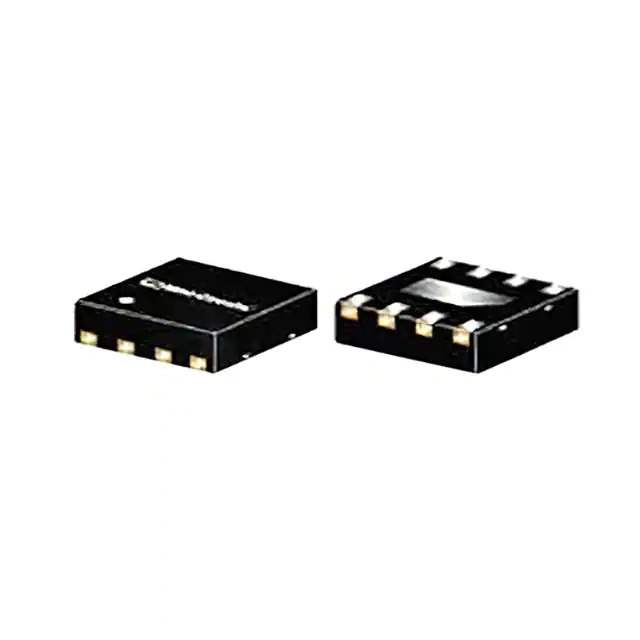

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 4GHz ~ 18GHz
P1dB 16dBm
Gain 9.3dB
Noise Figure 2.9dB
RF Type LTE, SatCom, WiMax, WiFi, WLAN
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 48.2mA
Test Frequency 4GHz
Mounting Type Surface Mount
Package / Case 8-TFDFN Exposed Pad
Supplier Device Package MC1631-1
Base Product Number PMA2
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 890041-PMA2-183LN+
Ultra Librarian 3D Model Ultra Librarian PMA2-183LN+ CAD Model

Description

The 890041-PMA2-183LN+ is an RF amplifier designed for a wide range of applications including LTE, SatCom, WiMax, WiFi, and WLAN manufactured by Mini-Circuits.

  • Frequency: 4 GHz ~ 18 GHz
  • Gain: 9.3dB
  • Noise Figure: 2.9dB
  • Current - Supply: 48.2mA
  • Voltage - Supply: 4.75V ~ 5.25V
  • Package / Case: 8-TFDFN Exposed Pad
  • Mounting Type: Surface Mount
  • Status: Active
  • Standard Package: 1,000 pcs
