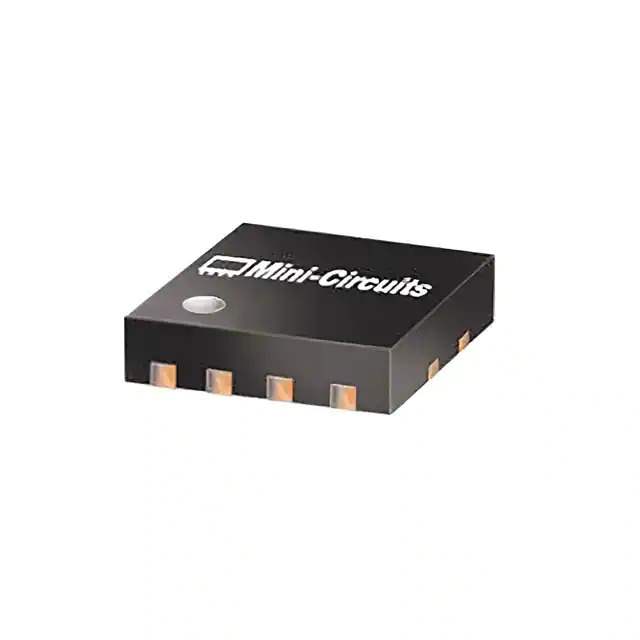

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 700MHz ~ 1.6GHz
P1dB 19.9dBm
Gain 18.8dB
Noise Figure 0.8dB
RF Type GPS, GSM, Radar, LTE
Voltage - Supply 3.8V ~ 4.2V
Current - Supply 55mA
Test Frequency 1GHz
Mounting Type Surface Mount
Package / Case 8-TFDFN Exposed Pad
Supplier Device Package MC1631-1
Base Product Number PMA2
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 834005-PMA2-162LN+
Ultra Librarian 3D Model Ultra Librarian PMA2-162LN+ CAD Model

Description

The 834005-PMA2-162LN+ is an RF amplifier designed for use in GPS, GSM, Radar, and LTE applications. It operates at a frequency range of 700MHz to 1.6GHz and offers a gain of 18.8dB and a noise figure of 0.8dB. This amplifier requires a current supply of 55mA and operates at a voltage range of 3.8V to 4.2V. It is surface mountable and comes in an 8-TFDFN Exposed Pad package. The supplier device package is MC1631-1, and it is manufactured by Mini-Circuits. This amplifier is an active product and is widely used in various RF and wireless systems.

  • Frequency Range: 700MHz to 1.6GHz
  • Gain: 18.8dB
  • Noise Figure: 0.8dB
  • Current Supply: 55mA
  • Voltage Range: 3.8V to 4.2V
  • Package: 8-TFDFN Exposed Pad
  • Supplier Device Package: MC1631-1
