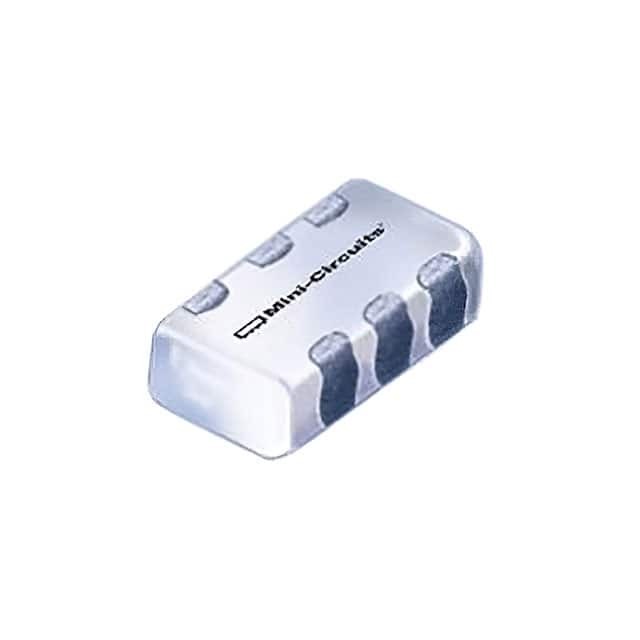

NCS1-112+
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 700MHz ~ 1.1GHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 13°
Insertion Loss (Max) 1.2dB
Return Loss (Min) 10.1dB
Package / Case 0805 (2012 Metric), 6 PC Pad
Mounting Type Surface Mount
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 887069-NCS1-112+
Ultra Librarian 3D Model Ultra Librarian NCS1-112+ CAD Model

Description

The 887069-NCS1-112+ is an RF and Wireless Balun component designed for specific applications.

  • Frequency Range: 700MHz to 1.1GHz
  • Impedance: 50/50 Ohm
  • Phase Difference: 13 degrees
  • Insertion Loss: Maximum 1.2dB
  • Return Loss: Minimum 10.1dB
  • Package: Surface Mount, 0805 (2012 Metric), 6 PC Pad
  • Manufacturer: Mini-Circuits
  • Status: Active
