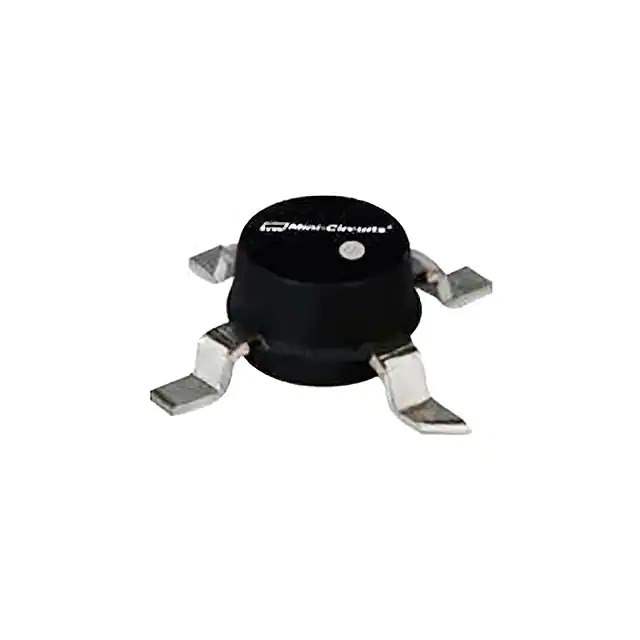

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 0Hz ~ 8GHz
P1dB 14.3dBm
Gain 6.9dB
Noise Figure 5.4dB
RF Type Cellular, PCS
Voltage - Supply 3.6V ~ 4.4V
Current - Supply 50mA
Test Frequency 100MHz
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 870855-ERA-9SM+
Ultra Librarian 3D Model Ultra Librarian ERA-9SM+ CAD Model

Description

The 870855-ERA-9SM+ is an RF amplifier from Mini-Circuits. It is designed to operate in the frequency range of 0Hz to 8GHz, making it suitable for a wide range of applications.

  • Frequency Range: 0Hz to 8GHz
  • Gain: 6.9dB
  • Noise Figure: 5.4dB
  • Supply Current: 50mA
  • P1dB: 14.3dBm
  • Mounting: surface mountable
  • Package: compact 4-SMD, gull wing package
  • Standard Package: 1,000 pcs
