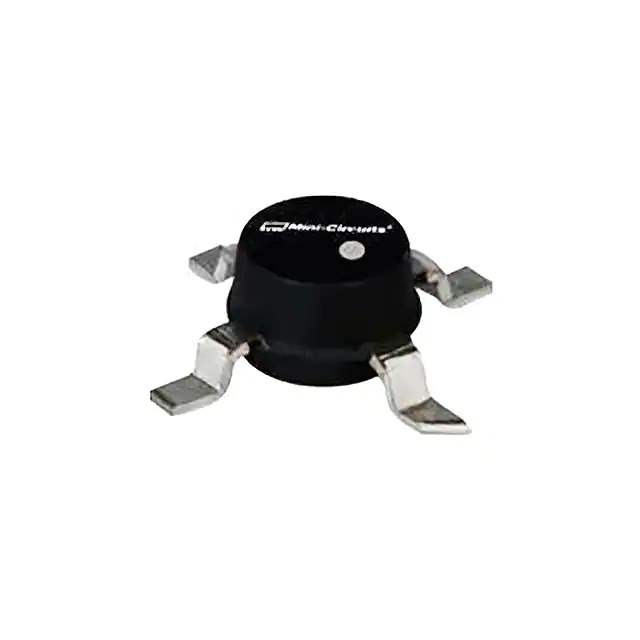

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 0Hz ~ 4GHz
P1dB 17.2dBm
Gain 10.8dB
Noise Figure 4.7dB
RF Type Cellular, CATV, DBS, PCS, WLAN
Voltage - Supply 4.7V ~ 5.3V
Current - Supply 70mA
Test Frequency 1GHz
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 123652-ERA-6SM+
Ultra Librarian 3D Model Ultra Librarian ERA-6SM+ CAD Model

Description

ERA-6SM+ RF Amplifier

The ERA-6SM+ is a compact, surface-mounted RF amplifier that offers high gain and low noise. It is perfect for amplifying weak signals and ensuring high-quality signal transmission in RF applications.

  • High gain and low noise figure
  • Compact size ideal for space-constrained environments
  • Broad frequency range capabilities

Applications:

  • Wireless communication systems
  • Satellite communication
  • RFID readers
  • Test and measurement equipment
  • Antenna systems

Benefits: The ERA-6SM+ amplifier is renowned for its ability to enhance signal strength with minimal noise, improving overall system performance.
