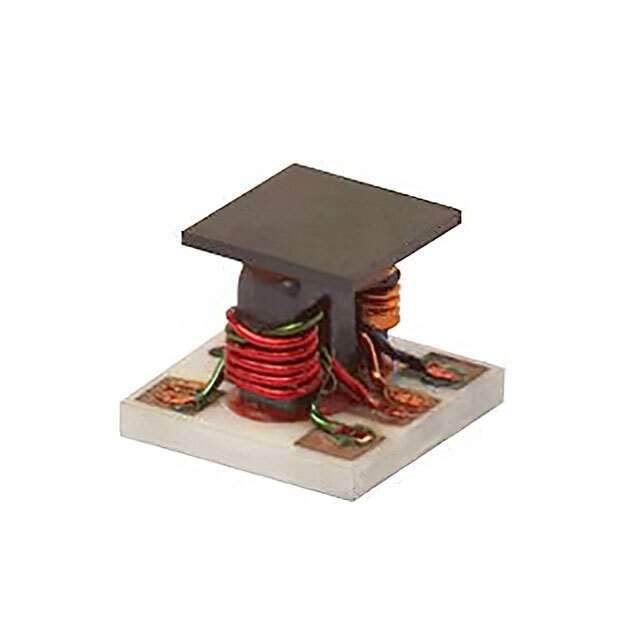

DBTC-20-4-75X+ Real Image
Same model may have multiple batches, images only for reference.

DBTC-20-4-75X+

Part No DBTC-20-4-75X+
Manufacturer Mini-Circuits
Catalog RF Directional Coupler
Description RF DIR COUPLER 5MHZ-1.25GHZ 5SMD  /  RF Directional Coupler CATV 5MHz ~ 1.25GHz 20.5 ±0.5dB 1W 5-SMD Module
Datasheet
DBTC-20-4-75X+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Directional Coupler
Mfr Mini-Circuits
Package Tape & Reel (TR)
Coupler Type Standard
Frequency 5MHz ~ 1.25GHz
Coupling Factor 20.5 ±0.5dB
Applications CATV
Power - Max 1W
Return Loss 29.99dB
Package / Case 5-SMD Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 3157-DBTC-20-4-75X+TR
Standard Package 2,000
Win Source Part Number 991047-DBTC-20-4-75X+
Ultra Librarian 3D Model Ultra Librarian DBTC-20-4-75X+ CAD Model

Description

The Mini-Circuits 991047-DBTC-20-4-75X+ is an RF directional coupler designed for CATV applications. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Type: RF directional coupler
  • Application: CATV
  • Power (Max): 1W
  • Frequency Range: 5MHz to 1.25GHz
  • Coupler Type: Standard
  • Coupling Factor: 20.5 ±0.5dB
  • Return Loss: 29.99dB
  • Package/Case: 5-SMD module
  • Standard Package: 2,000
  • MSL Level: 1 (unlimited)
  • HTSUS: 8548.00.0000
