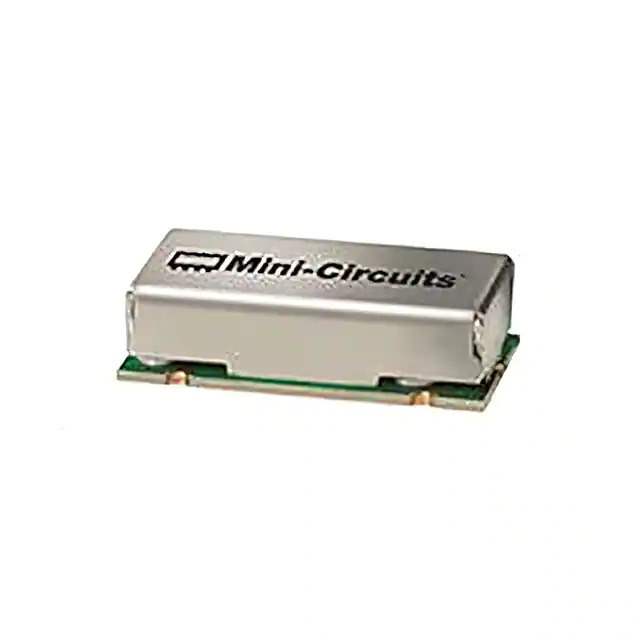

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - RF Filters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 199MHz Center
Bandwidth 10MHz
Filter Type Band Pass
Insertion Loss 5dB
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.826" L x 0.472" W (20.98mm x 11.99mm)
Height (Max) 0.220" (5.59mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 913406-BPF-B199+
Ultra Librarian 3D Model Ultra Librarian BPF-B199+ CAD Model

Description

The 913406-BPF-B199+ is a band pass RF filter from Mini-Circuits.

  • Center Frequency: 199MHz
  • Bandwidth: 10MHz
  • Insertion Loss: 5dB
  • Mounting Type: Surface Mountable
  • Package: 6-SMD, no lead
  • Height: 0.220 inches
  • Product Status: Active
