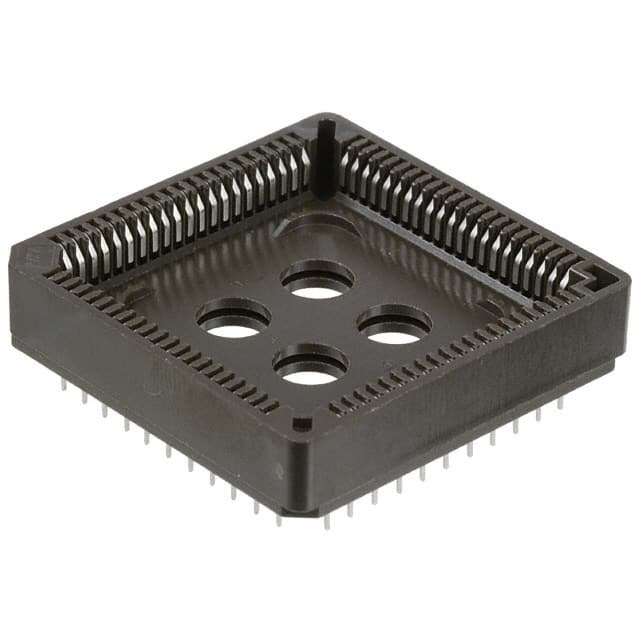

940-44-084-24-000000 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

940-44-084-24-000000

Part No 940-44-084-24-000000
Manufacturer Mill-Max Manufacturing Corp.
Catalog Sockets for ICs, Transistors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr Mill-Max Manufacturing Corp.
Series 940
Package Tube
Type PLCC
Number of Positions or Pins (Grid) 84 (4 x 21)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Material - Mating Beryllium Copper
Mounting Type Through Hole
Features Closed Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 200.0µin (5.08µm)
Contact Material - Post Brass Alloy
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating -55°C ~ 125°C
Termination Post Length 0.130" (3.30mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 30mOhm
Base Product Number 940-44
Other Names 9404408424000000,ED90011
Standard Package 16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285214-940-44-084-24-000000
Ultra Librarian 3D Model Ultra Librarian 940-44-084-24-000000 CAD Model

Description

The Mill-Max Manufacturing Corp. PLCC socket connector is designed for use with ICs and transistors.

  • Manufacturer: Mill-Max Manufacturing Corp.
  • Type: Socket Connector
  • Used With: ICs and Transistors
  • Frame: Closed
  • Termination: Solder
  • Mounting: Through-Hole
  • Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester
  • Flammability Resistance: UL94 V-0
  • Positions/Pins (Grid): 84
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Tin
  • Contact Material: Beryllium Copper
  • Contact Resistance: 30mOhm
  • Current Rating: 1A
  • Temperature Range: -55°C to 125°C
  • Package: Tube
  • Standard Package: 16
