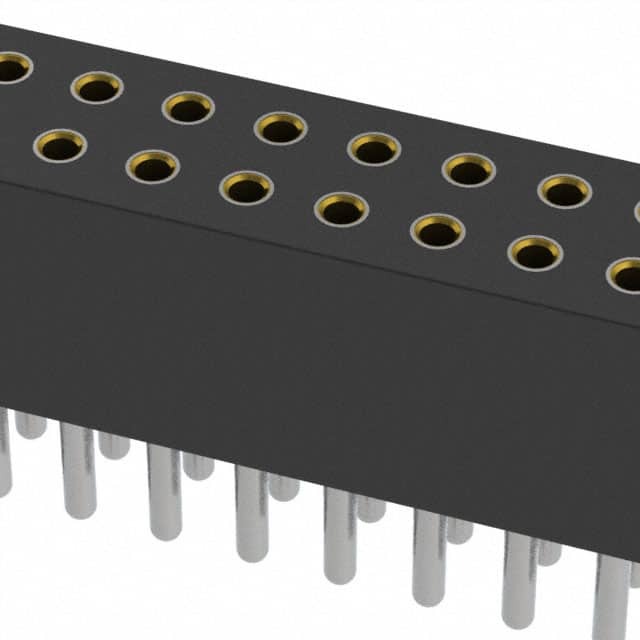

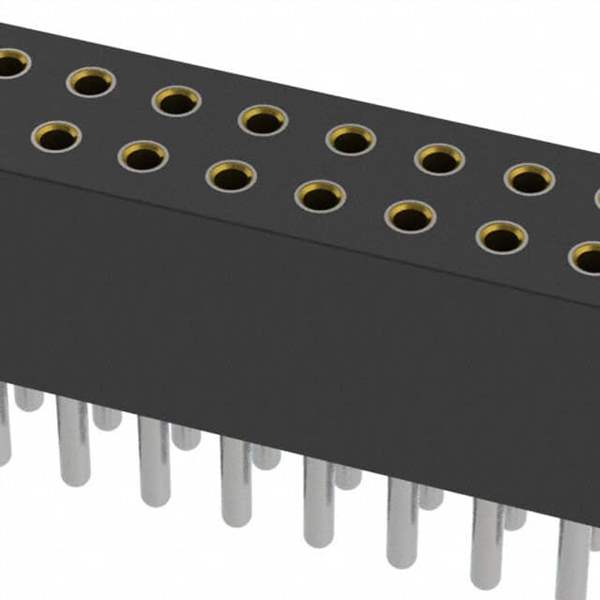

Same model may have multiple batches, images only for reference.

853-43-084-10-001000

Name: 853-43-084-10-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 1177797
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	853-43-084-10-001000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN RCPT 84POS 0.05 GOLD PCB / 84 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Mill-Max Manufacturing Corp.
Series	853
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	84
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.158" (4.01mm)
Contact Length - Post	0.102" (2.60mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3A
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape	Circular
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	200.0µin (5.08µm)
Base Product Number	853-43
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1177797-853-43-084-10-001000
Ultra Librarian 3D Model	Ultra Librarian 853-43-084-10-001000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. 853 Series is a board-to-board connector with a pitch of 0.050 inches (1.27mm).

Pitch: 0.050 inches (1.27mm)
Connector Type: Receptacle
Contact Gender: Female Socket
Positions: 84
Mounting: Through-Hole
Fastening Type: Push-Pull
Contact Material: Beryllium Copper
Voltage Rating: - Volts
Current Rating: 3A
Material Flammability Rating: UL94 V-0
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester
