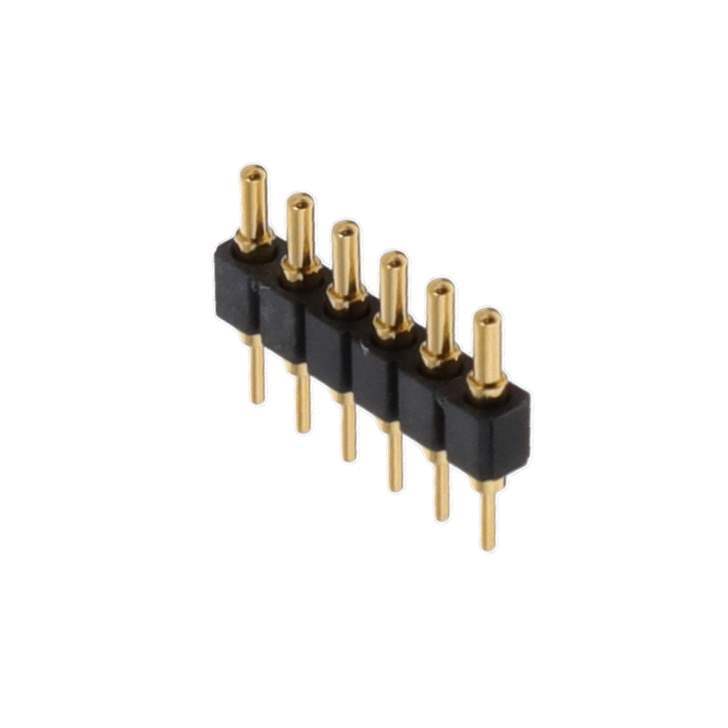

Same model may have multiple batches, images only for reference.

825-22-006-10-001101

Name: 825-22-006-10-001101
Brand: Mill-Max Manufacturing Corp.
SKU: WS1305294
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	825-22-006-10-001101
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN HEADER SINGLE 6-POS .302
Datasheet	825-22-006-10-001101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1305294-825-22-006-10-001101
Manufacturer	Mill-Max Manufacturing Corp.
Category	Connectors, Interconnects-Rectangular Connectors-Spring Loaded
Packaging	Tube
Part Status	Active
Connector Type	Piston
Number of Contacts	6
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Material	Copper Alloy
Ultra Librarian 3D Model	Ultra Librarian 825-22-006-10-001101 CAD Model

Alternative Products

Description

The values listed below are general specs applying for PRECI-DIP spring-loaded connectors. Please see individual catalog page for additional and product specific technical data.
Operating temperature range -55 ... +125 °C (-55 °… +85 °C with music wire spring)
Climatic category (IEC) 55/85/21
Operating humidity range Annual mean 75%
Max. working voltage 100 Vrms/150 Vdc (2.54 mm grid)
