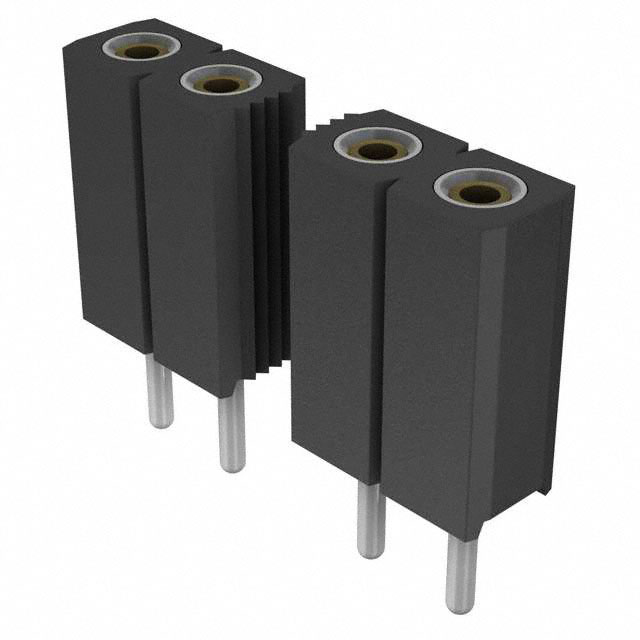

801-93-026-10-001000

Name: 801-93-026-10-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 447169
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	801-93-026-10-001000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	SIP SOCKET 26 POS STRAIGHT PCB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Packaging	Bulk
Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	26
Number of Positions Loaded	All
Pitch - Mating	2.54mm
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Insulation Color	Black
Insulation Height	0.276" (7.00mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin-Lead
Current Rating	4.5A
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape	Circular
Contact Finish Thickness - Post	200μin (5.08μm)
Win Source Part Number	1032300-801-93-026-10-001000
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1
Ultra Librarian 3D Model	Ultra Librarian 801-93-026-10-001000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. 1032300-801-93-026-10-001000 is a 26-position through-hole receptacle connector with a push-pull fastening type.

Pitch: 2.54mm
Application: Board-to-board
Contacts Material: Brass alloy
Contact Finish (Mating): Gold
Contact Finish (Post): Tin-lead
Voltage Rating: -
Current Rating: 4.5A
Insulation Material: Polycyclohexylenedimethylene terephthalate (PCT) and polyester
Flammability Rating: UL94 V-0
Insulation Height: 0.276 inches (7.00mm)
Contact Length: 0.118 inches (3.00mm)
Operating Temperature Range: -55°C to 125°C
REACH: Unaffected
