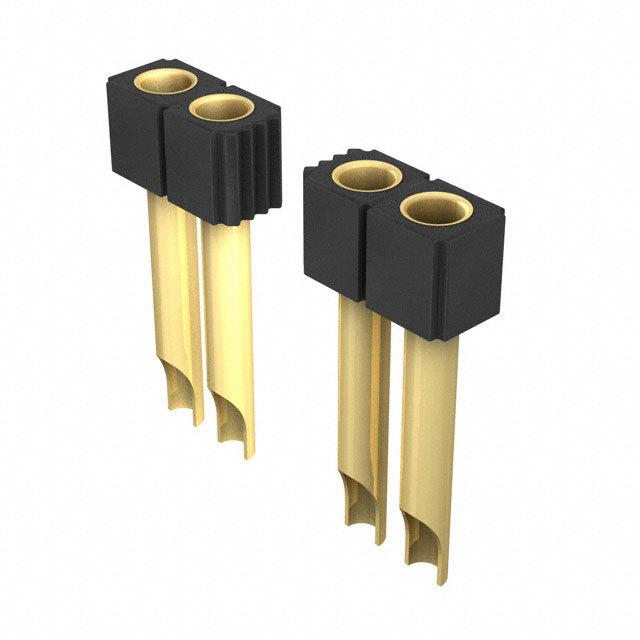

801-13-005-10-007000

Name: 801-13-005-10-007000
Brand: Mill-Max Manufacturing Corp.
SKU: 760221
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	801-13-005-10-007000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	SOLDER CUP STRIP, SINGLE ROW
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Series	801
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	5
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Style	Through Hole
Termination	Solder Cup
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Insulation Color	Black
Insulation Height	0.110" (2.79mm)
Contact Length - Post	0.340" (8.64mm)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating	4.5A
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape	Circular
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	10μin (0.25μm)
Win Source Part Number	760221-801-13-005-10-007000
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1
Family Name	801
Introduction Date	May 03, 2012
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 801-13-005-10-007000 CAD Model

Alternative Products

Description

The 760221-801-13-005-10-007000 is a board-to-board connector manufactured by Mill-Max Manufacturing Corp.

Supply and Demand Status: Limited
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Gold
Contact Material: Beryllium Copper
Current Rating: 4.5A
