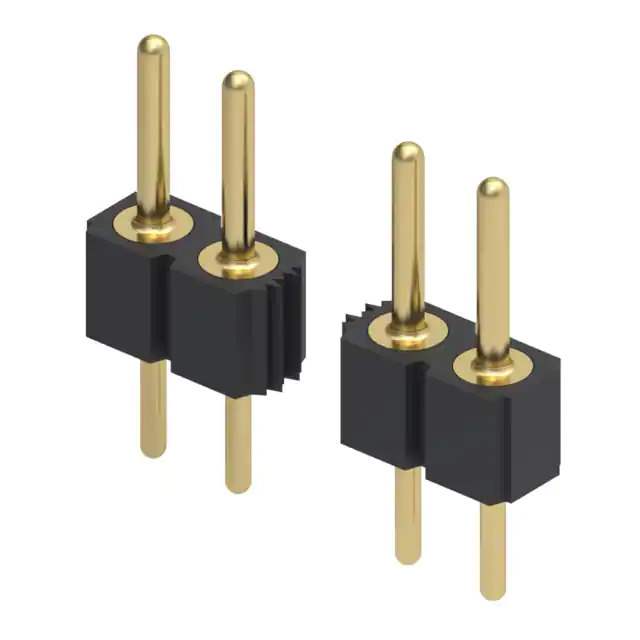

800-10-058-10-001000

Name: 800-10-058-10-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 845655
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	800-10-058-10-001000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 58POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Mill-Max Manufacturing Corp.
Series	800
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	58
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.195" (4.95mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.438" (11.12mm)
Insulation Height	0.110" (2.79mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Brass Alloy
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Color	Black
Contact Finish Thickness - Post	10.0µin (0.25µm)
Base Product Number	800-10
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	845655-800-10-058-10-001000
Ultra Librarian 3D Model	Ultra Librarian 800-10-058-10-001000 CAD Model

Alternative Products

Description

The 845655-800-10-058-10-001000 is a male pin header connector from Mill-Max Manufacturing Corp.

Series: 800
Package: Bulk
Row: Single
Number of Positions: 58
Mounting Type: Through Hole
Fastening Type: Push-Pull
Contact Material: Brass Alloy
Contact Finish: Gold
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Finish Thickness (Mating and Post): 10.0µin (0.25µm)
