399-43-144-10-003000

Part No 399-43-144-10-003000
Manufacturer Mill-Max Manufacturing Corp.
Catalog Rectangular Connectors

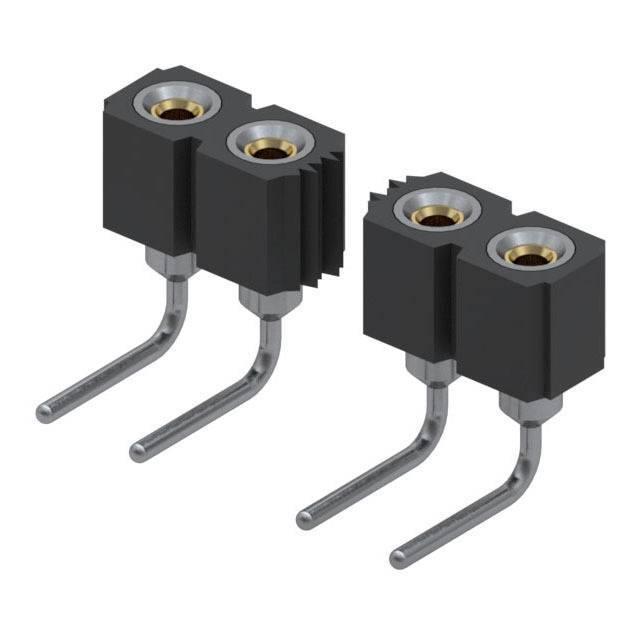

Description CONN SOCKET 44PIN R/A .100 SOLDR / Conn Socket Strip SKT 44 POS 2.54mm Solder RA Thru-Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Series 399
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 44
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Insulation Color Black
Insulation Height 0.100" (2.54mm)
Contact Length - Post 0.126" (3.20mm)
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating 3A
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape Circular
Contact Material Beryllium Copper
Contact Finish Thickness - Post 200μin (5.08μm)
Win Source Part Number 772388-399-43-144-10-003000
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name 399
Introduction Date March 09, 2009
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 399-43-144-10-003000 CAD Model

Description

The 772388-399-43-144-10-003000 is a 44-position female socket receptacle connector from Mill-Max Manufacturing Corp.

  • Style: Board-to-Board
  • Pitch: 0.100" (2.54mm)
  • Mounting: Through Hole, Right Angle
  • Contact Material: Beryllium Copper
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Contact Finish Thickness (Mating): 30μin (0.76μm)
  • Contact Finish Thickness (Post): 200μin (5.08μm)
  • Current Rating: 3A
  • Temperature Range: -55°C ~ 125°C
  • Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
  • Material Flammability Rating: UL94 V-0
  • Insulation Height: 0.100" (2.54mm)
  • ECCN: EAR99
  • Country of Origin: United States of America
  • Packaging: Bulk
  • Standard Package: 1
