Same model may have multiple batches, images only for reference.

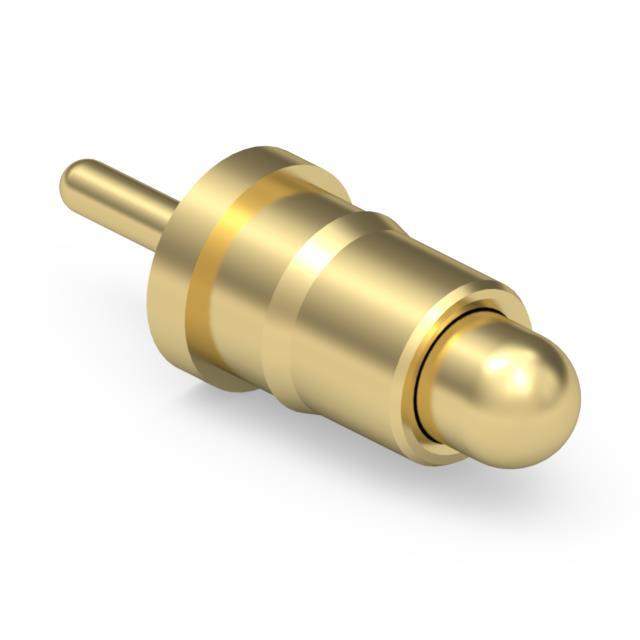

0906-0-15-20-76-14-11-0 Real Image
Same model may have multiple batches, images only for reference.

0906-0-15-20-76-14-11-0

Part No 0906-0-15-20-76-14-11-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Contacts, Spring Loaded and Pressure
Description SPRING-LOADED CONNECTORS Discrete Spring-Loaded Contacts | CONTACT SPRING LOADED T/H GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Packaging Bulk
Contact Type Sleeve & Plunger
Mounting Style Through Hole
Maximum Working Height 0.137" (3.48mm)
Recommended Working Height 0.118" (3.00mm)
Minimum Working Height 0.098" (2.50mm)
Pad Layout Dimension Circular - 0.072" (1.83mm) (TH)
Operating Force - Initial 25gf
Operating Force - Mid Compression 60gf
Plunger Size 0.042" (1.07mm) Dia
Mating Cycles 1000000
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 20.0μin (0.51μm)
Current Rating (Amps) 2A
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1120790-0906-0-15-20-76-14-11-0
Manufacturer Homepage www.mill-max.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0906-0-15-20-76-14-11-0 CAD Model

Description

The Mill-Max Manufacturing Corp. 0906-0-15-20-76-14-11-0 is a high-quality connector designed for a variety of applications.

  • Mounting: Through-Hole
  • Contact Type: Sleeve and Plunger
  • Contact Finish: Gold
  • Contact Finish Thickness: 20.0μin (0.51μm)
  • Material: Copper Alloy
  • Material Flammability Rating: -
  • Mating Cycles: 1000000
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 500
  • Maximum Working Height: 0.137" (3.48mm)
  • Recommended Working Height: 0.118" (3.00mm)
