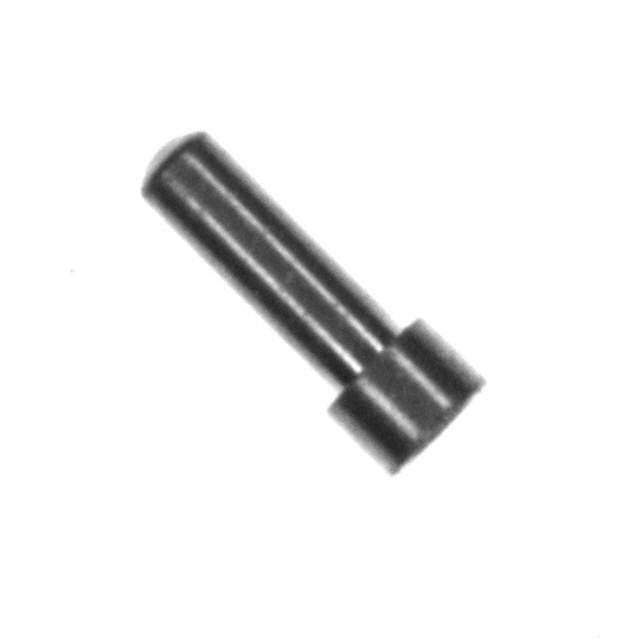

0554-0-15-01-11-27-10-0 Real Image
Same model may have multiple batches, images only for reference.

0554-0-15-01-11-27-10-0

Part No 0554-0-15-01-11-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .015-.020 SOLDER / STD. CONNECTOR JACK RECEPTACLE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Series 0554
Packaging Bulk
Tail Type No Tail
Termination Solder
Length - Overall 0.160" (4.06mm)
Accepts Pin Diameter 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Mounting Hole Diameter 0.040" (1.02mm)
Pin Hole Diameter 0.031" (0.79mm)
Flange Diameter 0.056" (1.42mm)
Socket Depth 0.140" (3.56mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Operating Temperature Range -55°C ~ 125°C
Win Source Part Number 772334-0554-0-15-01-11-27-10-0
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name 554
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin United States of America
Ultra Librarian 3D Model Ultra Librarian 0554-0-15-01-11-27-10-0 CAD Model

Description

The Mill-Max Manufacturing Corp. 710698 is a high-quality connector designed for use in a wide range of electronic applications.

  • Contact Finish: gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Contact Material: beryllium copper
  • Length: 0.160" (4.06mm)
  • Pin Diameter: 0.015" to 0.020" (0.38mm to 0.51mm)
  • Mounting Hole Diameter: 0.040" (1.02mm)
  • Flange Diameter: 0.056" (1.42mm)
  • Operating Temperature: -55°C to 125°C
