Same model may have multiple batches, images only for reference.

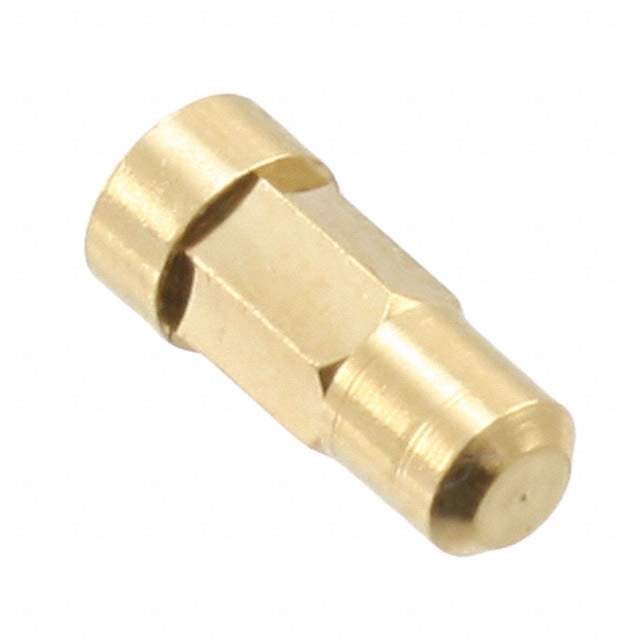

0342-0-15-15-42-27-10-0 Real Image
Same model may have multiple batches, images only for reference.

0342-0-15-15-42-27-10-0

Part No 0342-0-15-15-42-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .059-.063 HEX / Pin Receptacle Connector 0.059" ~ 0.063" (1.50mm ~ 1.60mm) No Tail Press-Fit, Hex
Datasheet
0342-0-15-15-42-27-10-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - PC Pin Receptacles, Socket Connectors
Mfr Mill-Max Manufacturing Corp.
Series 0342
Package Bulk
Tail Type No Tail
Termination Press-Fit, Hex
Length - Overall 0.240" (6.10mm)
Accepts Pin Diameter 0.059" ~ 0.063" (1.50mm ~ 1.60mm)
Mounting Hole Diameter 0.090" (2.29mm)
Flange Diameter 0.106" (2.69mm)
Socket Depth 0.210" (5.33mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Temperature Range - Operating -55°C ~ 125°C
Insertion Force 20.0N
Base Product Number 0342-0
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 0342015154227100,3.42015E+14,ED1118
Standard Package 500
Win Source Part Number 1034827-0342-0-15-15-42-27-10-0
Ultra Librarian 3D Model Ultra Librarian 0342-0-15-15-42-27-10-0 CAD Model

Description

The Mill-Max Manufacturing Corp. PC Pin Receptacles Socket Connector is a high-quality electronic component that is widely used in electronic devices. This connector is part of the 0342 series and is supplied in bulk packaging.

  • Termination: Press-fit and hex
  • Material: Beryllium copper with gold plating
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Accepts Pin Diameter: 0.059 inch to 0.063 inch (1.50mm to 1.60mm)
  • ECCN: EAR99
  • REACH: unaffected
