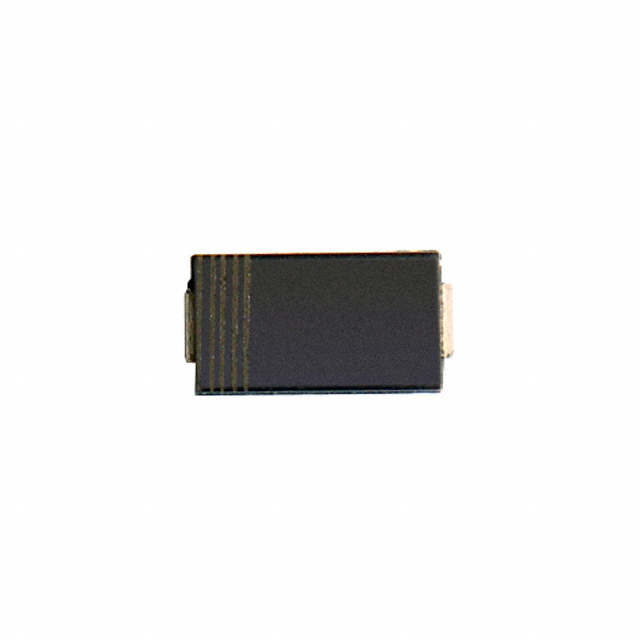

Same model may have multiple batches, images only for reference.
SMAJ4474CE3/TR13 Microsemi Corporation – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMAJ4474CE3/TR13

Part No SMAJ4474CE3/TR13
Manufacturer Microsemi Corporation
Catalog Diodes - Zener - Single
Description DIODE ZENER 24V 1.5W DO214AC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR)
Product Status Obsolete
Voltage - Zener (Nom) (Vz) 24 V
Tolerance ±2%
Power - Max 1.5 W
Impedance (Max) (Zzt) 16 Ohms
Current - Reverse Leakage @ Vr 50 nA @ 19.2 V
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 200 mA
Operating Temperature -55°C ~ 150°C
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMAJ)
Ultra Librarian 3D Model Ultra Librarian SMAJ4474CE3/TR13 CAD Model
