Same model may have multiple batches, images only for reference.

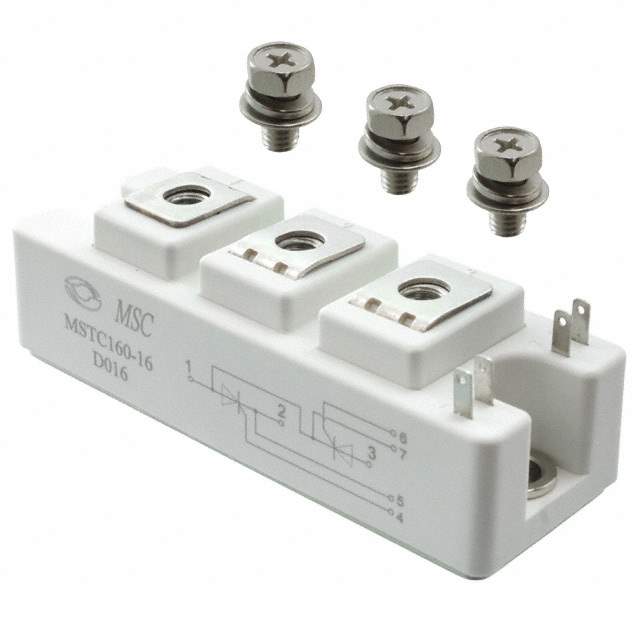

MSTC160-16 Real Image
Same model may have multiple batches, images only for reference.

MSTC160-16

Part No MSTC160-16
Manufacturer Microsemi Corporation
Catalog SCRs - Single - Modules
Description POWER MOD THYRISTOR/DIODE T2 / SCR Module 1600V 5400A 7-Pin Case T-2
Datasheet
MSTC160-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete(EOL)
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1600V
Current - On State (It (AV)) (Maximum) 160A
Voltage - Gate Trigger (Vgt) (Maximum) 3V
Current - Gate Trigger (Igt) (Maximum) 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 5400A @ 50Hz
Current - Hold (Ih) (Maximum) 400mA
Operating Temperature Range -40°C ~ 130°C (TJ)
Mounting Screw Mount
Package Module
Win Source Part Number 789865-MSTC160-16
Popularity Medium
Supply and Demand Status Limited
Family Name MSTC160-16
Introduction Date October 19, 2011
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MSTC160-16 CAD Model

Description

The Microsemi Corporation MSTC160-16 is a module that is used in various applications.

  • Voltage Off State: 1600V
  • Current Non-Rep. Surge: 5400A @ 50Hz
  • Estimated EOL Date: Obsolete/End of Life
