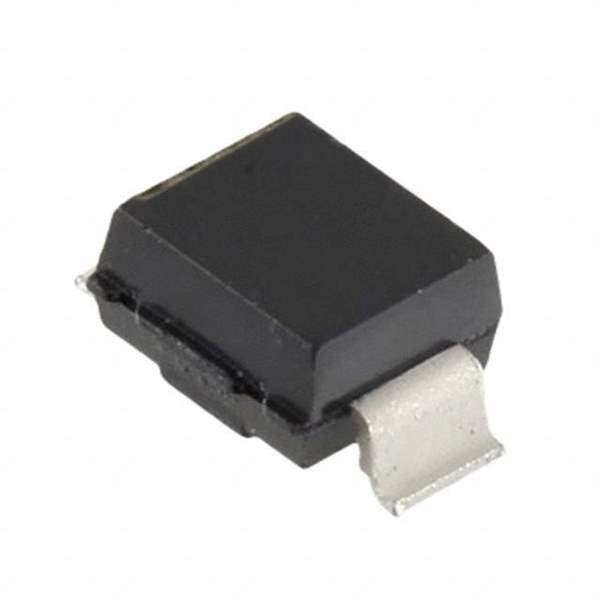

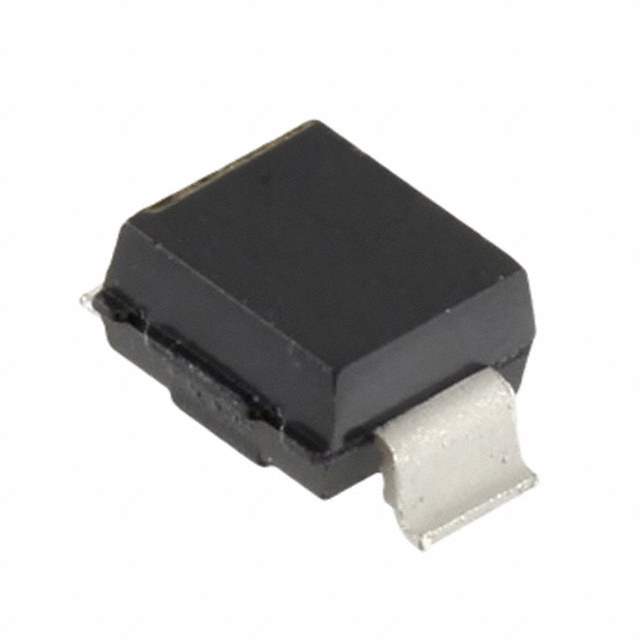

Same model may have multiple batches, images only for reference.

MSMBG18A

Name: MSMBG18A
Brand: Microsemi Corporation
SKU: 794633
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MSMBG18A
Manufacturer	Microsemi Corporation
Catalog	TVS - Diodes
Description	TVS DIODE 18VWM 29.2VC DO215AA / TVS Diode Single Uni-Dir 18V 600W 2-Pin SMBG Bag
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500
Packaging	Bulk
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	18V
Minimum Breakdown Voltage	20V
Maximum Clamping Voltage	29.2V
Current - Peak Pulse (10/1000μs)	20.5A
Power - Peak Pulse	600W
Power Line Protection	No
Applications	General
Operating Temperature Range	-65°C ~ 150°C (TJ)
Mounting	SMD
Package	DO-215AA, SMB Gull Wing
Manufacturer Package	SMBG (DO-215AA)
Win Source Part Number	794633-MSMBG18A
Popularity	Medium
Supply and Demand Status	Limited
Family Name	MSMBG18A
Introduction Date	July 05, 2010
ECCN	EAR99
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian MSMBG18A CAD Model

Alternative Products

Description

The MSMBG18A from Microsemi Corporation is a military-grade zener diode designed for general applications.

Type: Unidirectional
Voltage Reverse Standoff: 18V
Peak Pulse Current: 20.5A (10/1000μs)
Power Peak Pulse: 600W
Package: DO-215AA (SMB Gull Wing)
Minimum Breakdown Voltage: 20V
Maximum Clamping Voltage: 29.2V
Category: Circuit Protection
Popularity: Medium
Manufacturer Package: SMBG (DO-215AA)
Estimated EOL Date: 2029
