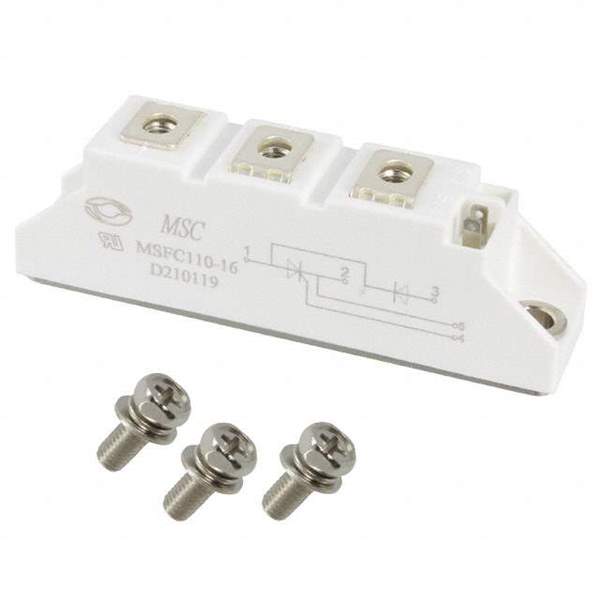

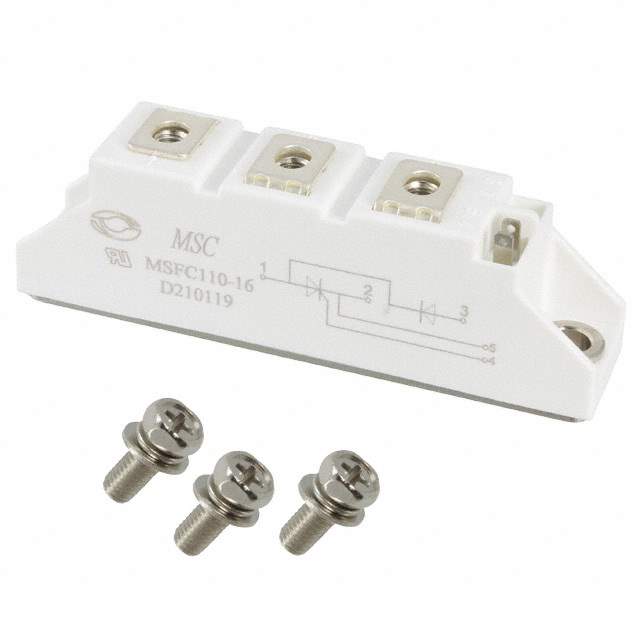

MSFC110-16

Part No MSFC110-16
Manufacturer Microsemi Corporation
Catalog SCRs - Single - Modules
Description POWER MOD THYRISTOR/DIODE F1 / SCR Module 600V 2250A 5-Pin Case F1
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete(EOL)
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 1600V
Current - On State (It (AV)) (Maximum) 110A
Voltage - Gate Trigger (Vgt) (Maximum) 3V
Current - Gate Trigger (Igt) (Maximum) 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 2250A @ 50Hz
Current - Hold (Ih) (Maximum) 250mA
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Screw Mount
Package Module
Win Source Part Number 789509-MSFC110-16
Popularity Medium
Supply and Demand Status Limited
Family Name MSFC110-16
Introduction Date October 19, 2011
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MSFC110-16 CAD Model

Description

The MSFC110-16 is a series connection SCR/diode module manufactured by Microsemi Corporation.

  • Voltage Rating: 1600V
  • Current Rating: 110A
  • Package Type: Module
  • Mounting: Screw
  • Voltage Off State: 1600V
  • Current Non-Rep. Surge: 2250A @ 50Hz
  • Alternative Part: IRKH92/06A, VSKH72/06P, VSKH105/06S90P, IRKH71/06AS90
