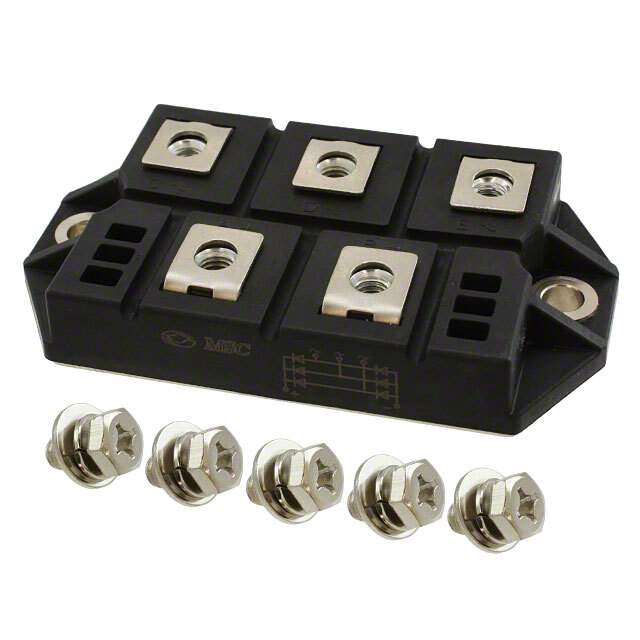

MSDM200-16 Real Image
Same model may have multiple batches, images only for reference.

MSDM200-16

Part No MSDM200-16
Manufacturer Microsemi Corporation
Catalog Bridge Rectifiers
Description POWER MOD RECT BRIDGE 3PH M3-1 / Rectifier Bridge Diode Single 1.6KV 200A 5-Pin Case M3-1
Datasheet
MSDM200-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete(EOL)
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1600V
Current - Average Rectified (Io) 200A
Voltage - Forward (Vf) (Maximum) @ If 1.45V @ 200A
Current - Reverse Leakage @ Vr 500μA @ 1600V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package M3-1
Manufacturer Package M3-1
Win Source Part Number 789506-MSDM200-16
Popularity Medium
Supply and Demand Status Limited
Family Name MSDM200-16
Introduction Date October 19, 2011
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MSDM200-16 CAD Model

Description

The Microsemi Corporation MSDM200-16 is a standard technology three-phase diode type product with a current average rectified (Io) of 200A.

  • Voltage Peak Reverse (Maximum): 1600V
  • Voltage Forward (Vf) (maximum): 1.45V @ 200A
  • Status: Obsolete/End Of Life
  • Discrete Semiconductor Products: Yes
  • Popularity: Medium
  • Packaging: Bulk
  • Mounting Type: Chassis
  • Win Source Part Number: 789506-MSDM200-16
