Same model may have multiple batches, images only for reference.

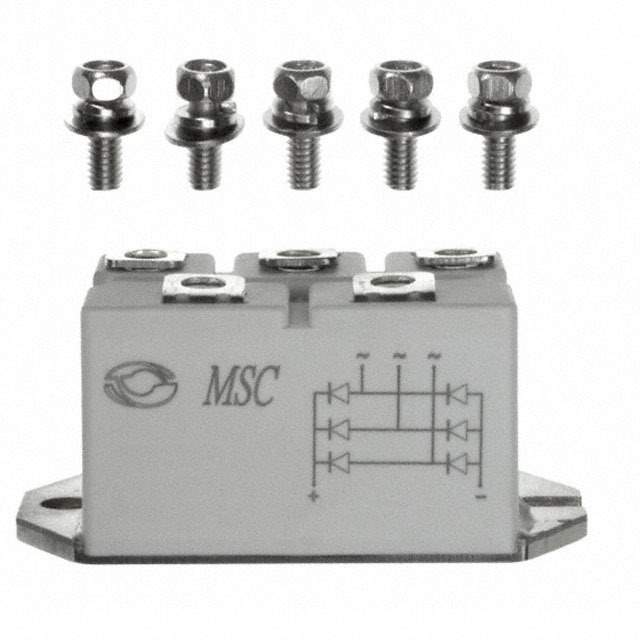

MSD75-16 Real Image
Same model may have multiple batches, images only for reference.

MSD75-16

Part No MSD75-16
Manufacturer Microsemi Corporation
Catalog Bridge Rectifiers
Description BRIDGE RECT 3PHASE 1.6KV 75A SM2
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount SM2
Manufacturer Microsemi Corporation
Package Bulk
Part Status Obsolete
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package M2
Case / Package SM2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number MSD75-16MI, MSD75-16MI-ND, MSD7516
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 885950-MSD75-16
Ultra Librarian 3D Model Ultra Librarian MSD75-16 CAD Model

Description

The Microsemi Corporation MSD75-16 is a bridge rectifier that is designed for various applications. It features a three-phase standard 1.6 kV chassis mount SM2 and comes in a bulk package.

  • Type: Three-Phase Standard Bridge Rectifier
  • Voltage: 1.6 kV
  • Mounting: Chassis Mount
  • Package: Bulk
  • Category: Discrete Semiconductor Products
  • Case/Package: SM2
  • ECCN: EAR99
  • Popularity: Medium
  • Quantity per Package: 1
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH unaffected
  • HTSUS Code: 8541.10.0080
  • Other Part Numbers: MSD75-16MI, MSD75-16MI-ND
  • Manufacturer: Microsemi Corporation
