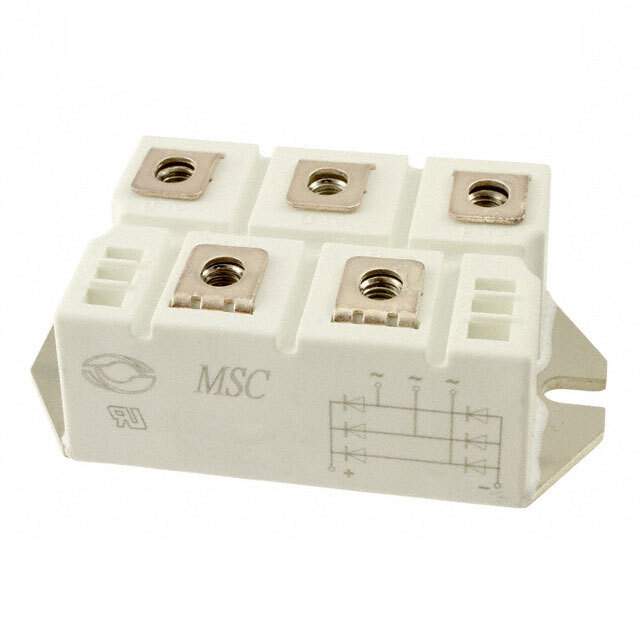

MSD160-18 Real Image
Same model may have multiple batches, images only for reference.

MSD160-18

Part No MSD160-18
Manufacturer Microsemi Corporation
Catalog Bridge Rectifiers
Description BRIDGE RECT 3PHASE 1.8KV 160A M3 / Glass Passivated Three Phase Rectifier Bridge
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete (End Of Life)
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1.8kV
Current - Average Rectified (Io) 160A
Voltage - Forward (Vf) (Maximum) at If 1.65V at 300A
Current - Reverse Leakage at Vr 500μA at 1800V
Temperature Range - Operating -40°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package M3
Supplier Device Package M3
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814257-MSD160-18
Ultra Librarian 3D Model Ultra Librarian MSD160-18 CAD Model

Description

The Microsemi Corporation electronic component from Microsemi Corporation is a three-phase diode type.

  • Current-Average Rectified (Io): 160A
  • Part Status: Obsolete (end of life)
  • Popularity: Low
  • Supply and Demand Status: Limited
  • Mounting Type: Chassis
  • Manufacturer Package: M3
  • Win Source Part Number: 814257-MSD160-18
  • Temperature Range: -40°C ~ 150°C
  • Maximum Voltage Peak Reverse: 1.8kV
  • Voltage-Forward (Vf) (maximum) @ If: 1.65V @ 300A
  • Current-Reverse Leakage @ Vr: 500μA @ 1800V
