Same model may have multiple batches, images only for reference.

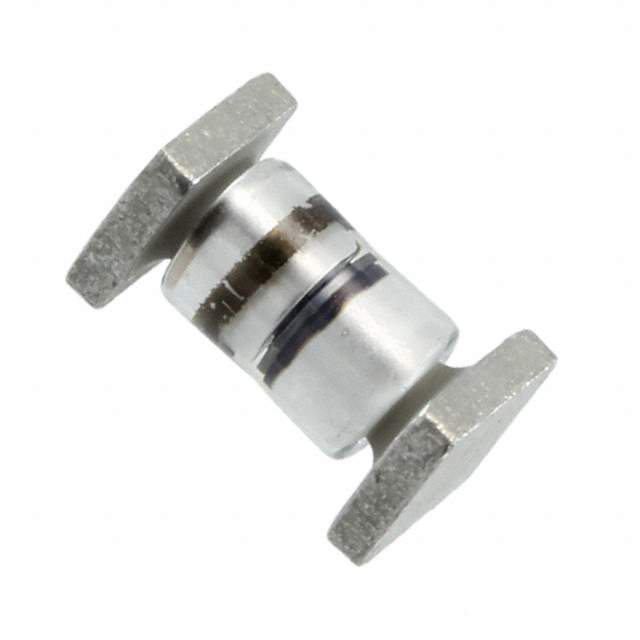

JANTXV1N4462US Real Image
Same model may have multiple batches, images only for reference.

JANTXV1N4462US

Part No JANTXV1N4462US
Manufacturer Microsemi Corporation
Catalog Diodes - Zener - Single
Description 1.5 WATT GLASS ZENER DIODES | DIODE ZENER 7.5V 1.5W D5A
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Voltage - Zener (Nom) (Vz) 7.5V
Tolerance ±5%
Maximum Power 1.5W
Impedance (Maximum) (Zzt) 2.5 Ohms
Current - Reverse Leakage at Vr 1μA at 4.5V
Voltage - Forward (Vf) (Maximum) at If 1V at 200mA
Temperature Range - Operating -65°C ~ 175°C
Mounting Style SMD
Manufacturer Package SQ-MELF, A
Supplier Device Package D-5A
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191545-JANTXV1N4462US
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTXV1N4462US CAD Model

Description

The Microsemi Corporation 624004 is a D-5A packaged zener diode with a voltage tolerance of ±5% and a maximum power dissipation of 1.5 W.

  • Manufacturer: Microsemi Corporation
  • Package: D-5A
  • Voltage Tolerance: ±5%
  • Maximum Power Dissipation: 1.5 W
  • Forward Voltage (Vf): 1 V @ 200 mA
  • Reverse Leakage Current: 1 μA @ 4.5 V
  • Zener Voltage (Vz): 7.5 V
  • Maximum Impedance (Zzt): 2.5 Ohms
  • Operating Temperature: -65°C to 175°C
  • Packaging: SQ-MELF, A
  • Supply Status: Limited supply and demand status
