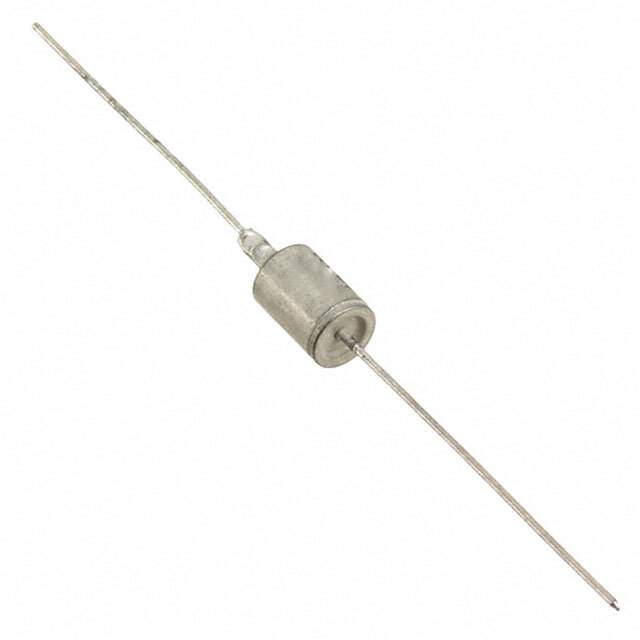

JANTX1N6048A Real Image
Same model may have multiple batches, images only for reference.

JANTX1N6048A

Part No JANTX1N6048A
Manufacturer Microsemi Corporation
Catalog TVS - Diodes
Description 1500 WATT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR | TVS DIODE 20V 33.2V DO13
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Microsemi Corporation
Packaging Bulk
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff 20V
Voltage - Breakdown (Minimum) 22.8V
Voltage - Clamping (Maximum) at Ipp 33.2V
Current - Peak Pulse (10/1000μs) 45A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package DO-13
Supplier Device Package DO-13 (DO-202AA)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191456-JANTX1N6048A
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTX1N6048A CAD Model

Description

The 1191456-JANTX1N6048A is a Zener type diode that is used for general purpose applications from Microsemi Corporation.

  • Peak Pulse Current: 45A
  • Power Rating: 1500W
  • Mounting: through hole
  • Package: DO-13 (DO-202AA)
  • Supply and Demand Status: limited
  • Reverse Standoff Voltage: 20V
  • Breakdown Voltage: 22.8V
  • Clamping Voltage @ Ipp: 33.2V
  • Operating Temperature Range: -55°C to 175°C
