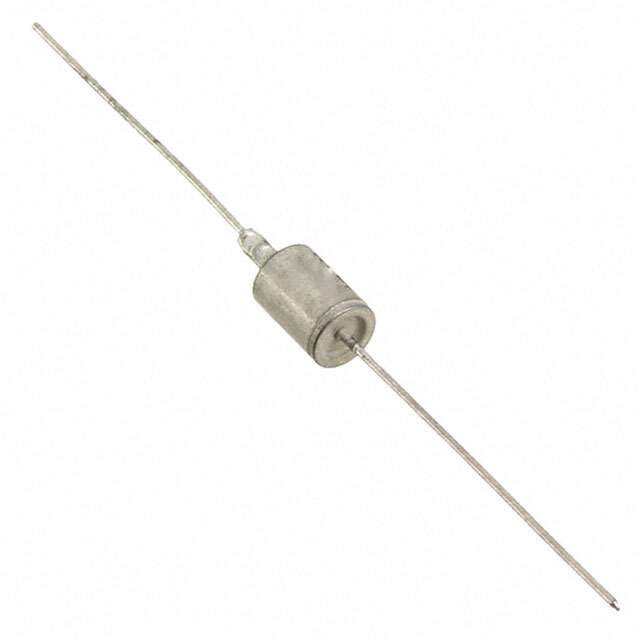

JANTX1N5907 Real Image
Same model may have multiple batches, images only for reference.

JANTX1N5907

Part No JANTX1N5907
Manufacturer Microsemi Corporation
Catalog TVS - Diodes
Description TVS DIODE 5V 8.5V DO13 / 1500 WATT LOW VOLTAGE TRANSIENT VOLTAGE SUPPRESSOR
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microsemi Corporation
Packaging Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Maximum) at Ipp 8.5V
Current - Peak Pulse (10/1000μs) 120A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications Use For General
Temperature Range - Operating -65°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package DO-13
Supplier Device Package DO-13 (DO-202AA)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812339-JANTX1N5907
Ultra Librarian 3D Model Ultra Librarian JANTX1N5907 CAD Model

Description

The Microsemi Corporation JANTX1N5907 is a zener diode designed for general use in discrete semiconductor products.

  • Reverse Standoff Voltage: 5V
  • Minimum Breakdown Voltage: 6V
  • Peak Pulse Current: 120A (10/1000μs)
  • Peak Power Dissipation: 1500W (1.5kW)
  • Voltage Clamping (Maximum) @ Ipp: 8.5V
  • Package: DO-13 (DO-202AA)
  • Operating Temperature Range: -65°C to 175°C
