Same model may have multiple batches, images only for reference.

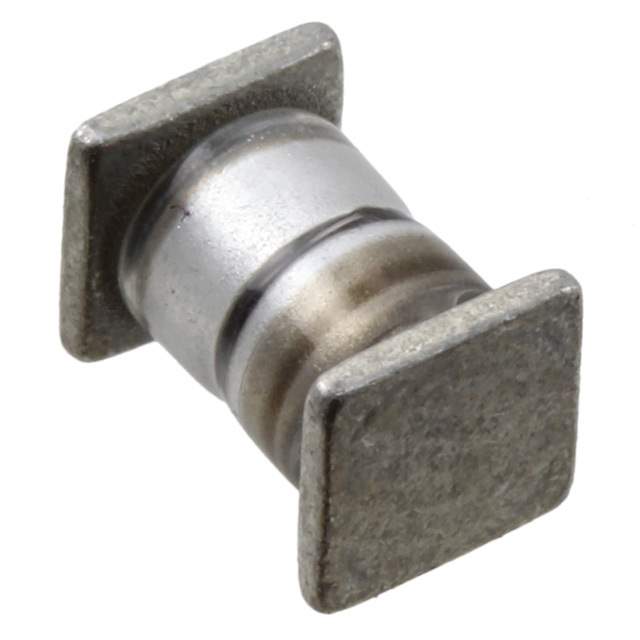

JANTX1N5811US Real Image
Same model may have multiple batches, images only for reference.

JANTX1N5811US

Part No JANTX1N5811US
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description HIGH EFFICIENTCY AXIAL LEAD RECTIFIERS | DIODE GEN PURP 150V 3A B-MELF
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 150V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Maximum) at If 875mV at 4A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage at Vr 5μA at 150V
Capacitance at Vr, F 60pF at 10V, 1MHz
Mounting Style SMD
Manufacturer Package SQ-MELF, B
Supplier Device Package B, SQ-MELF
Operating Temperature - Junction -65°C ~ 175°C
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191455-JANTX1N5811US
Manufacturer Homepage www.sensitron.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTX1N5811US CAD Model

Description

The Microsemi Corporation JANTX1N5811US is a standard diode that has a maximum voltage of 150V and a maximum current of 3A.

  • Recovery Time: fast recovery time of 30ns
  • Operating Temperature: -65°C to 175°C
  • Package: B, SQ-MELF package
  • Mounting: surface mountable
  • Application: perfect for a wide range of applications, including power supplies, voltage regulators, and more
