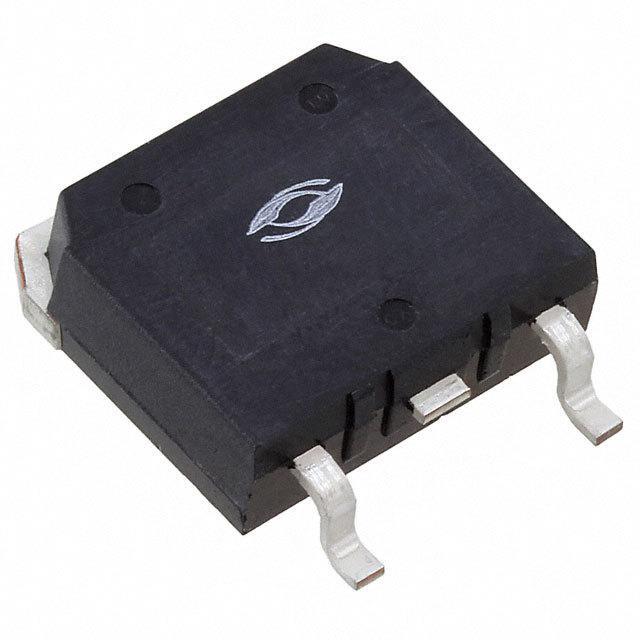

APT30S20SG

Name: APT30S20SG
Brand: Microsemi Corporation
SKU: 768691
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	APT30S20SG
Manufacturer	Microsemi Corporation
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 200V 45A D3 / Diode Schottky 200V 45A 3-Pin(2+Tab) D3PAK
Datasheet	APT30S20SG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Microsemi Corporation
Packaging	Tube
Part Status	Obsolete(EOL)
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Maximum)	200V
Current - Average Rectified (Io)	45A
Voltage - Forward (Vf) (Maximum) @ If	850mV @ 30A
Speed	Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr)	55ns
Current - Reverse Leakage @ Vr	500μA @ 200V
Mounting	SMD
Package	TO-268-3, D3Pak (2 Leads + Tab), TO-268AA
Manufacturer Package	D3 [S]
Operating Temperature - Junction	-55°C ~ 150°C
Win Source Part Number	768691-APT30S20SG
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	30
Family Name	APT30S20S
Introduction Date	July 11, 2002
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian APT30S20SG CAD Model

Alternative Products

Description

The Microsemi Corporation APT30S20SG is a Schottky diode manufactured by Microsemi Corporation.

Reverse Recovery Time: 55 ns
Current Reverse Leakage: 500 μA @ 200 V
Current Average Rectified: 45A
Diode Family: APT30S20S
Operating Temperature Range: -55°C to 150°C
Package: TO-268-3, D3Pak (2 Leads + Tab), TO-268AA
Mounting: SMD
Status: Obsolete
Estimated EOL Date: Passed
Quantity Per Package: 30
Popularity: Medium
