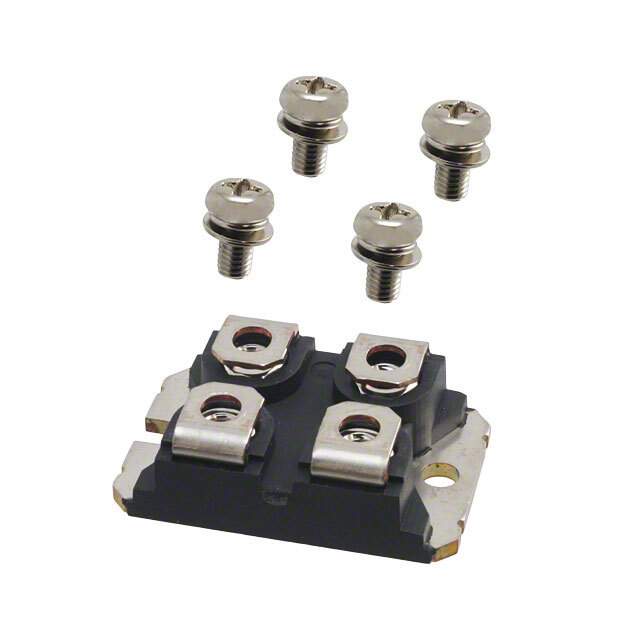

APT2X30DC120J Real Image
Same model may have multiple batches, images only for reference.

APT2X30DC120J

Part No APT2X30DC120J
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.2KV 30A SOT227 / Diode Array 2 Independent Silicon Carbide Schottky 1200 V 30A Chassis Mount SOT-227-4, miniBLOC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer Microsemi Corporation
Packaging Bulk
Product Status Obsolete
Diode Configuration 2 Independent
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 30 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 600 µA @ 1200 V
Mounting Chassis Mount
Case / Package SOT-227-4, miniBLOC
Supplier Device Package SOT-227
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number APT2X30DC120J-ND,150-APT2X30DC120J
Standard Package 1
Win Source Part Number 1325174-APT2X30DC120J
Ultra Librarian 3D Model Ultra Librarian APT2X30DC120J CAD Model

Description

The APT2X30DC120J is a silicon carbide Schottky diode designed for use in rectifier arrays.

  • Mounting: Chassis-mounted
  • Packaging: Bulk
  • Voltage DC Reverse (Vr) (Max): 1200V
  • Voltage Forward (Vf) (Max): 1.8V @ 30A
  • Reverse Recovery Time (trr): 0ns
  • Current Reverse Leakage @ Vr: 600 µA @ 1200V
  • Diode Configurations: Two independent
  • Average Rectified Current (Io): 30A per diode
  • Package: SOT-227
  • ECCN: EAR99 compliant
  • Case/Package: SOT-227-4 miniBLOC
  • Status: Obsolete
  • MSL Level: 1 (Unlimited)
