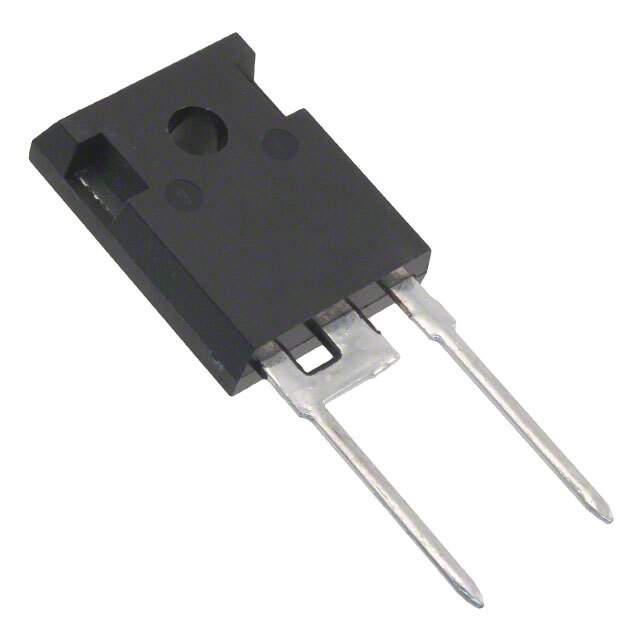

APT100S20BG Real Image
Same model may have multiple batches, images only for reference.

APT100S20BG

Part No APT100S20BG
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description HIGH VOLTAGE SCHOTTKY DIODE
Datasheet
APT100S20BG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Tube
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 200V
Current - Average Rectified (Io) 120A
Voltage - Forward (Vf) (Maximum) @ If 950mV @ 100A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 70ns
Current - Reverse Leakage @ Vr 2mA @ 200V
Mounting Style Through Hole
Package TO-247-2
Manufacturer Package TO-247 [B]
Operating Temperature - Junction -55°C ~ 150°C
Win Source Part Number 1146586-APT100S20BG
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Balance
Family Name APT100S20B
Introduction Date September 18, 2001
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian APT100S20BG CAD Model

Description

The APT100S20BG is a fast recovery Schottky diode from Microsemi Corporation.

  • Current Rating: 120A
  • Reverse Recovery Time: 70ns
  • Maximum Reverse Voltage: 200V
  • Package: TO-247-2
  • Mounting Type: Through-Hole
  • Voltage Forward: 950mV @ 100A
  • Current Reverse Leakage: 2mA @ 200V
  • Operating Temperature: -55°C to 150°C
  • Alternative To: SED100LT200, SED100LT200TX, SED100LE200TX
  • Introduction Date: September 18, 2001
  • Estimated EOL Date: 2023
  • Supply and Demand Status: Balanced
