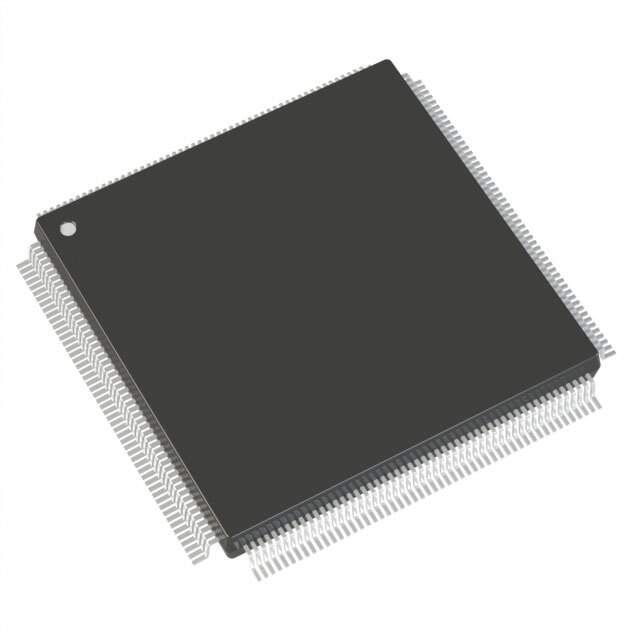

A42MX36-PQG208 Real Image
Same model may have multiple batches, images only for reference.

A42MX36-PQG208

Part No A42MX36-PQG208
Manufacturer Microsemi Corporation
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description 40MX and 42MX FPGA Families
Datasheet
A42MX36-PQG208 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Microsemi Corporation
Series MX
Total RAM Bits 2560
Number of I/O 176
Number of Gates 54000
Operating Supply Voltage 3 V ~ 3.6 V, 4.75 V ~ 5.25 V
Mounting SMD
Operating Temperature Range 0°C ~ 70°C (TA)
Package 208-BFQFP
Manufacturer Package 208-PQFP (28x28)
Win Source Part Number 1134681-A42MX36-PQG208
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name A42MX36
Introduction Date August 27, 1997
ECCN 3A991.d.2
Country of Origin Hong Kong
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian A42MX36-PQG208 CAD Model

Description

The Microsemi Corporation A42MX36-PQG208 is a series MX integrated circuit with a Win Source Part Number 1134681.

  • Win Source Part Number: 1134681
  • Operating Temperature: 0°C to 70°C (TA)
  • Package: 208-BFQFP
  • Mounting: SMD
  • Operating Supply Voltage: 3 V to 3.6 V and 4.75 V to 5.25 V
  • Number of I/Os: 176
  • Total RAM Bits: 2560
  • Number of Gates: 54000
  • Family Name: A42MX36
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2024
