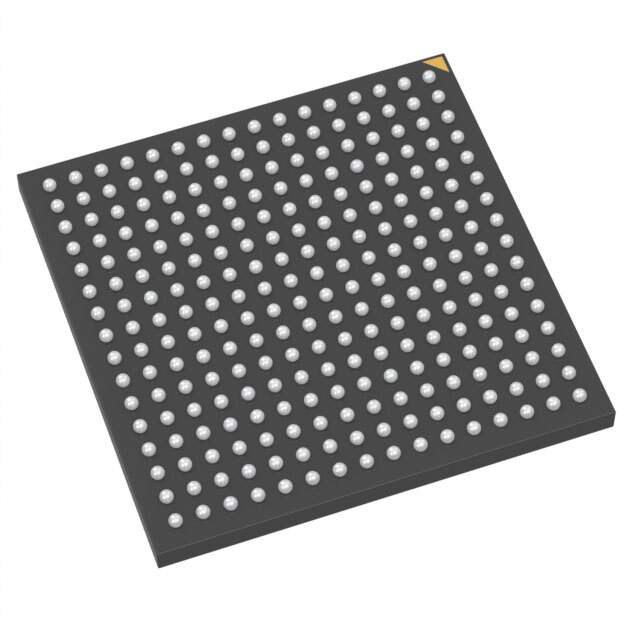

A2F500M3G-FGG256 Real Image
Same model may have multiple batches, images only for reference.

A2F500M3G-FGG256

Part No A2F500M3G-FGG256
Manufacturer Microsemi Corporation
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-M3 80MHZ 256FBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microsemi Corporation
Packaging Tray
Architecture MCU, FPGA
Core Processor ARM Cortex -M3
Flash Size 512KB
RAM Size 64KB
Peripherals DMA, POR, WDT
Connectivity EBI/EMI, Ethernet, I2C, SPI, UART/USART
Speed 80MHz
Primary Attributes ProASIC 3 FPGA, 500K Gates, 11520 D-Flip-Flops
Temperature Range - Operating 0°C ~ 85°C
Manufacturer Package 256-LBGA
Supplier Device Package 256-FPBGA (17x17)
Number of I/O MCU - 25, FPGA - 66
Part Number Series A2F500M3G
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808242-A2F500M3G-FGG256
Ultra Librarian 3D Model Ultra Librarian A2F500M3G-FGG256 CAD Model

Description

The A2F500M3G-FGG256 is a ProASIC 3 FPGA electronic component manufactured by Microsemi Corporation.

  • Core Processor: ARM Cortex-M3
  • Speed: 80MHz
  • Connectivity: EBI/EMI, Ethernet, I2C, SPI, UART/USART
  • Popularity: Medium
  • Supply & Demand: Balanced
  • Device Package: 256-FPBGA (17x17)
  • Manufacturer Package: 256-LBGA
  • Gates: 500K
  • D-Flip-Flops: 11520
