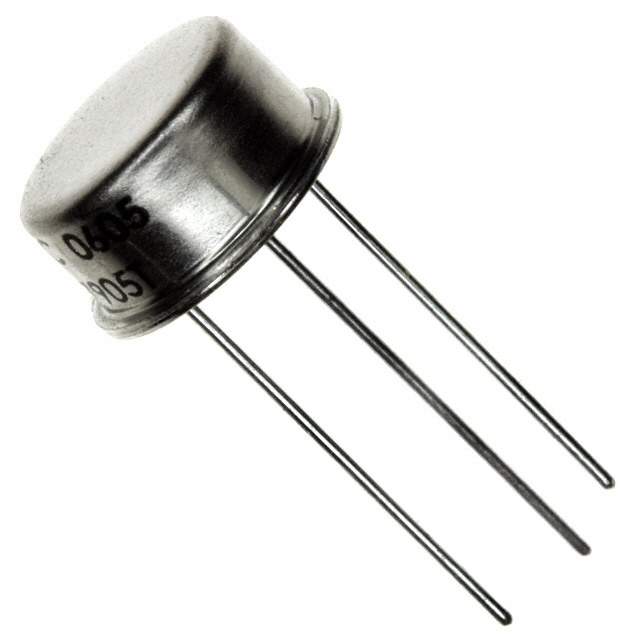

2N3500 Real Image
Same model may have multiple batches, images only for reference.

2N3500

Part No 2N3500
Manufacturer Microsemi Corporation
Catalog Transistors (BJT) - Single
Description Chip Type 2C3501 Geometry 5620 Polarity NPN | TRANS NPN 150V 0.3A TO-39
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 300mA
Voltage - Collector Emitter Breakdown (Maximum) 150V
Vce Saturation (Maximum) at Ib, Ic 400mV at 15mA, 150mA
Current - Collector Cutoff (Maximum) 10μA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 40 at 150mA, 10V
Maximum Power 1W
Temperature Range - Operating -65°C ~ 200°C
Mounting Style Through Hole
Manufacturer Package TO-205AD, TO-39-3 Metal Can
Supplier Device Package TO-39 (TO-205AD)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123732-2N3500
Manufacturer Homepage www.semicoa.com/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N3500 CAD Model

Description

The Microsemi Corporation 2N3500 is a discrete semiconductor product designed for various applications.

  • Product: 2N3500
  • Manufacturer:Microsemi Corporation
  • Win Source Part Number: 1123732-2N3500
  • Manufacturer Homepage: www.semicoa.com/
  • Application: Applications that require high power amplification
  • Current Collector Cutoff: 10μA (ICBO)
  • Voltage Collector Emitter Breakdown: 150V
  • Transistor Type: NPN
  • Temperature Range: -65°C to 200°C
