Same model may have multiple batches, images only for reference.

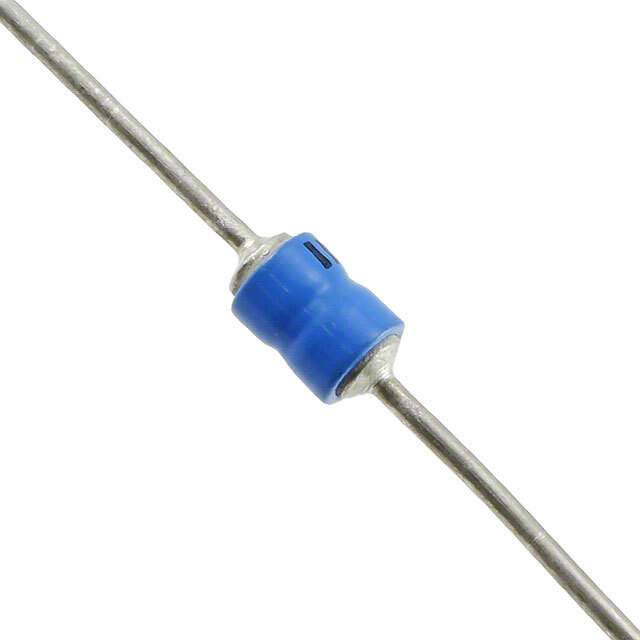

1N5809 Real Image
Same model may have multiple batches, images only for reference.

1N5809

Part No 1N5809
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 3A AXIAL
Datasheet
1N5809 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 875mV @ 4A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 5μA @ 100V
Capacitance @ Vr, F 60pF @ 10V, 1MHz
Mounting Through Hole
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 1002321-1N5809
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian 1N5809 CAD Model

Description

The Microsemi Corporation 1N5809 is a through-hole standard diode with a maximum DC reverse voltage of 100V and an average rectified current of 3A.

  • Forward Voltage: 875mV @ 4A
  • Reverse Recovery Time: 30ns
