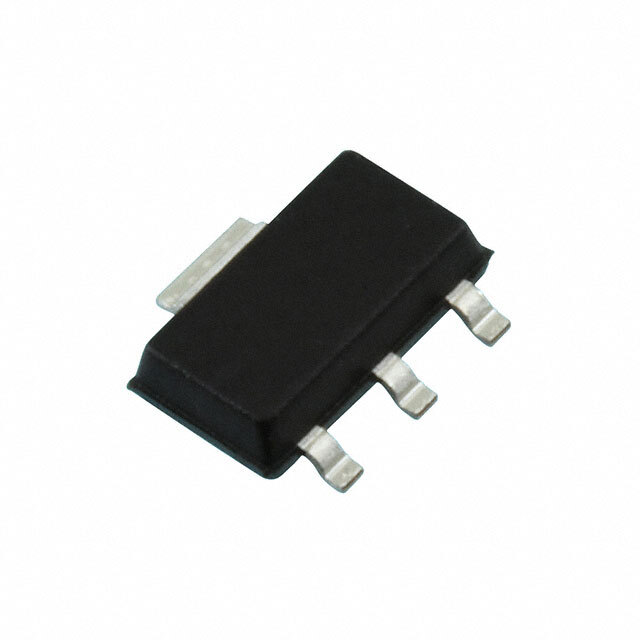

HAL1820SF-A Micronas GmbH
Same model may have multiple batches, images only for reference.

HAL1820SF-A

Part No HAL1820SF-A
Manufacturer Micronas GmbH
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR HALL ANALOG SOT89B-1 / Hall Effect Sensor Single Axis SOT-89B-1
Datasheet
HAL1820SF-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Linear, Compass (ICs)
Mfr TDK-Micronas GmbH
Series HAL®1820
Package Tape & Reel
Product Status Last Time Buy
Technology Hall Effect
Axis Single
Output Type Analog Voltage
Sensing Range ±20mT ~ ±160mT
Voltage - Supply 4.5V ~ 5.5V
Current - Supply (Max) 10mA
Current - Output (Max) 1mA
Resolution 10 b
Bandwidth 2.5kHz
Temperature Range - Operating -40°C ~ 170°C (TJ)
Features Selectable Scale
Supplier Device Package SOT-89B-1
Mounting SMD (SMT)
Package / Case TO-243AA, Variant
Base Product Number HAL1820
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names HAL1820SF-ATR,HAL1820SF-ACT,HAL1820SF-A-4-R-1-00-HACF-0606,HAL1820SF-ADKR
Standard Package 1,000
Win Source Part Number 1116264-HAL1820SF-A
Ultra Librarian 3D Model Ultra Librarian HAL1820SF-A CAD Model

Description

The TDK-Micronas HAL1820SF-A magnetic sensor is a linear, compass IC that features selectable scale. TDK-Micronas manufactures the HAL1820SF-A.

  • Type: Linear, Compass IC
  • Features: Selectable Scale
  • Package: Tape & Reel
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Technology: Hall Effect
  • Output Type: Analog Voltage
  • Bandwidth: 2.5kHz
  • Current-Supply (Max): 10mA
  • Current-Output (Max): 1mA
  • Axis: Single
  • Sensing Range: ±20mT ~ ±160mT
  • Resolution: 10 b
  • Voltage-Supply: 4.5V ~ 5.5V
  • Package/Case: TO-243AA, Variant
  • Supplier Device Package: SOT-89B-1
  • Temperature Range: -40°C ~ 170°C (TJ)
  • MSL: 1 (Unlimited)
  • HTSUS: 8542.39.0001
