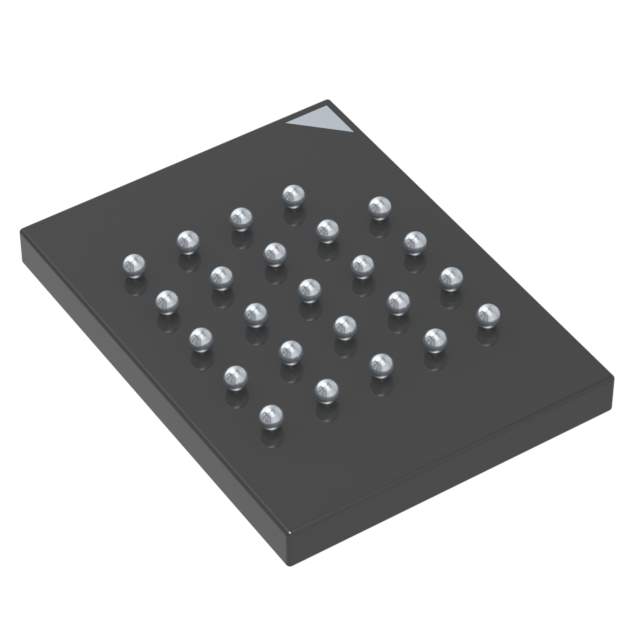

The N25Q128A13E1241F is a 128Mb (134,217,728 bits) Serial Flash Memory device from Micron Technology. It's part of the N25Q series, known for its high performance, reliability, and low power consumption. It utilizes a standard Serial Peripheral Interface (SPI) for communication, making it suitable for a wide range of embedded systems.

Applications

• Embedded systems requiring non-volatile storage for boot code, application code, or data storage.
• Automotive systems for storing configuration data, firmware updates, and map data.
• Industrial control systems for storing program code and data logging.
• Networking equipment for storing boot code, configuration data, and firmware.
• Consumer electronics, such as set-top boxes, digital TVs, and gaming consoles, for storing firmware and application data.

Features

• Density: 128Mb (134,217,728 bits)
• Interface: SPI (Serial Peripheral Interface)
• Supply Voltage: 2.7V to 3.6V
• Operating Temperature: -40°C to +85°C
• Page Size: 256 bytes
• Sector Size: 4KB
• Block Size: 64KB
• High Performance: Fast read/write speeds for efficient data access.
• Security Features: Offers security features like password protection and block protection to safeguard stored data.
• Advanced Sector Protection: Provides individual sector locking to protect critical code and data.
• Serial Command Set: Industry-standard serial command set for easy integration.

Benefits

• Reliable Storage: Provides non-volatile storage, ensuring data retention even when power is removed.
• Fast Performance: Enables quick boot-up times and efficient data access, improving system responsiveness.
• Low Power Consumption: Minimizes power consumption, extending battery life in portable devices.
• Compact Size: Small footprint allows for integration into space-constrained applications.
• Easy Integration: Standard SPI interface simplifies integration with microcontrollers and other system components.
• Data Security: Protects sensitive data with security features like block protection and password protection.

Additional Details

The N25Q128A13E1241F supports various SPI modes for flexible communication. It also features a deep power-down mode to further reduce power consumption when the device is not actively in use. It is available in different package options to suit various board designs. The device supports standard, dual, and quad SPI operation modes, enabling maximum data throughput. The extended operating temperature range makes it suitable for harsh environments.
