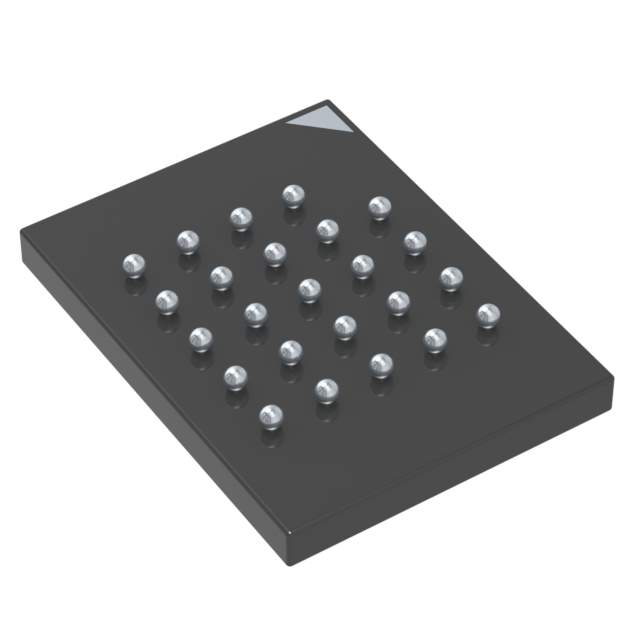

The N25Q064A13E12H0F is a 64 Mb (Megabit) Serial Flash Memory device manufactured by Micron Technology Inc. It is part of the N25Q family, well-regarded for its high performance, low power consumption, and robust reliability, making it ideal for a wide range of embedded applications. The specific part number denotes specific configuration options, packaging, and temperature grades.

Applications

• Embedded Systems: Used for storing boot code, operating systems, and application code in various embedded systems.
• Consumer Electronics: Found in devices like digital cameras, MP3 players, and portable gaming devices for firmware and data storage.
• Industrial Control: Employed in industrial automation equipment, such as programmable logic controllers (PLCs) and human-machine interfaces (HMIs), for storing configuration data and application programs.
• Networking Devices: Utilized in routers, switches, and modems for storing bootloaders, configuration files, and firmware updates.
• Medical Devices: Used in medical equipment for storing calibration data, patient information, and operating software.

Features

• Memory Size: 64 Mb (8MB) of storage capacity.
• Interface: Serial Peripheral Interface (SPI) for simple interfacing with microcontrollers and processors.
• Supply Voltage: Operates on a single 2.7V to 3.6V power supply.
• Page Program: Supports page program operations for fast and efficient data writing.
• Sector Erase: Provides sector erase functionality for flexible memory management.
• Block Erase: Offers block erase capability for efficient bulk data erasure.
• Security Features: Includes features like password protection and block locking for enhanced security.
• Operating Temperature: Industrial temperature range for reliable operation in harsh environments.
• Quad SPI Support: Supports Quad SPI (QSPI) interface for higher data transfer rates compared to standard SPI.

Benefits

• High Performance: Provides fast read, write, and erase speeds for optimal system performance.
• Low Power Consumption: Minimizes power usage, making it suitable for battery-powered devices.
• Compact Size: Small package size allows for easy integration into space-constrained applications.
• Reliable Data Storage: Ensures data integrity and long-term data retention.
• Simplified System Design: SPI interface simplifies the connection to microcontrollers and other host devices.
• Cost-Effective Solution: Offers a cost-effective solution for non-volatile memory requirements.
• Enhanced Security: Protects sensitive data from unauthorized access and modification.

Additional Details

The N25Q064A13E12H0F is fabricated using advanced CMOS technology, resulting in low power consumption and high reliability. It is available in various package options to suit different application needs. The SPI interface supports multiple modes, including standard SPI, Dual SPI, and Quad SPI, enabling flexible data transfer rates. The device also features a deep power-down mode to further reduce power consumption when the device is not actively being used. Its robust feature set makes it a versatile choice for embedded systems requiring reliable and secure non-volatile memory.
