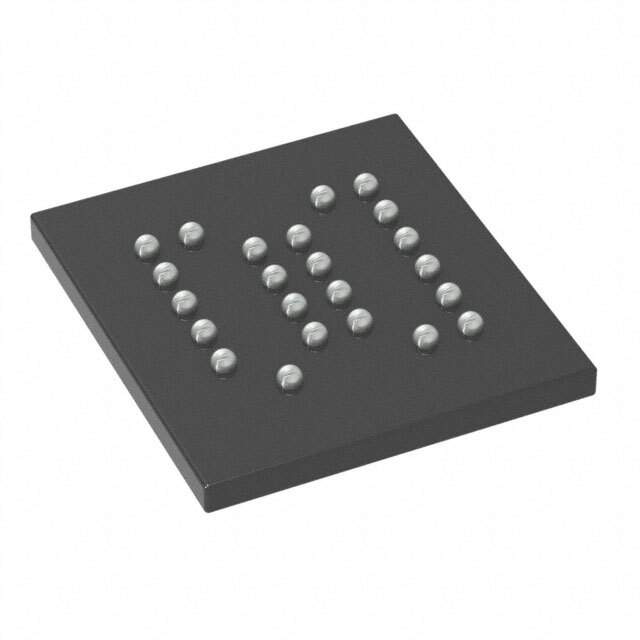

The Micron MT25QU256ABA8E55-0SIT is a 256Mb (megabit) NOR flash memory device designed for high-performance and reliable storage of code and data. It's part of Micron's Serial NOR Flash memory family, known for its fast read speeds, compact size, and low power consumption. This particular part is well-suited for a variety of embedded systems, industrial applications, and consumer electronics where fast boot-up times and efficient data storage are crucial.

Applications

• Embedded Systems: Boot code storage, configuration data, and application code storage in microcontrollers and microprocessors.
• Industrial Automation: Storage of firmware, configuration parameters, and data logging in industrial control systems.
• Consumer Electronics: Firmware storage in set-top boxes, digital TVs, and other consumer devices.
• Networking Equipment: Boot code and configuration storage in routers, switches, and other networking devices.
• Automotive Applications: Storage of firmware and data in automotive control units (ECUs).

Features

• Memory Size: 256Mb (32MB) capacity.
• Interface: Quad SPI (QSPI) interface for high-speed data transfer.
• Clock Speed: Supports clock frequencies up to 104MHz in QSPI mode.
• Page Size: 256 bytes per page.
• Sector Size: 4KB uniform sector architecture.
• Block Erase: Supports block erase operations for efficient memory management.
• Voltage: Operates at a supply voltage of 2.7V to 3.6V.
• Temperature Range: Industrial temperature range (-40°C to +85°C).
• Security Features: Includes security features like block protection and unique ID.
• Package: 8-pin SOIC or other compact package options available.

Benefits

• High Performance: QSPI interface enables fast read speeds, reducing boot-up times and improving system performance.
• Reliable Storage: NOR flash technology provides non-volatile storage with high endurance and data retention.
• Compact Size: Small package size allows for use in space-constrained applications.
• Low Power Consumption: Efficient power management extends battery life in portable devices.
• Easy Integration: Standard QSPI interface simplifies integration with microcontrollers and microprocessors.
• Security: Built-in security features protect data from unauthorized access.
• Wide Temperature Range: Operates reliably in harsh environments.

Additional Details

The MT25QU256ABA8E55-0SIT supports various SPI modes, including SPI mode 0 and SPI mode 3. It also supports Dual SPI and Quad SPI modes for increased data throughput. The device features a deep power-down mode to minimize power consumption when not actively in use. It has a typical endurance of 100,000 program/erase cycles per sector. The data retention is typically 20 years. The device is compliant with RoHS and REACH environmental regulations. The part number suffix "-0SIT" typically indicates specific packaging or testing options. The 4KB sector size allows for flexible memory management and efficient use of storage space. The block protection feature prevents accidental erasure or programming of critical data. The unique ID can be used for device identification and tracking. The datasheet provides detailed information on timing characteristics, electrical specifications, and package dimensions. The QSPI interface allows for direct connection to microcontrollers and microprocessors with QSPI controllers. The device can be programmed and erased using standard SPI programming tools and algorithms.
